Schneider Electric GGBL1022W

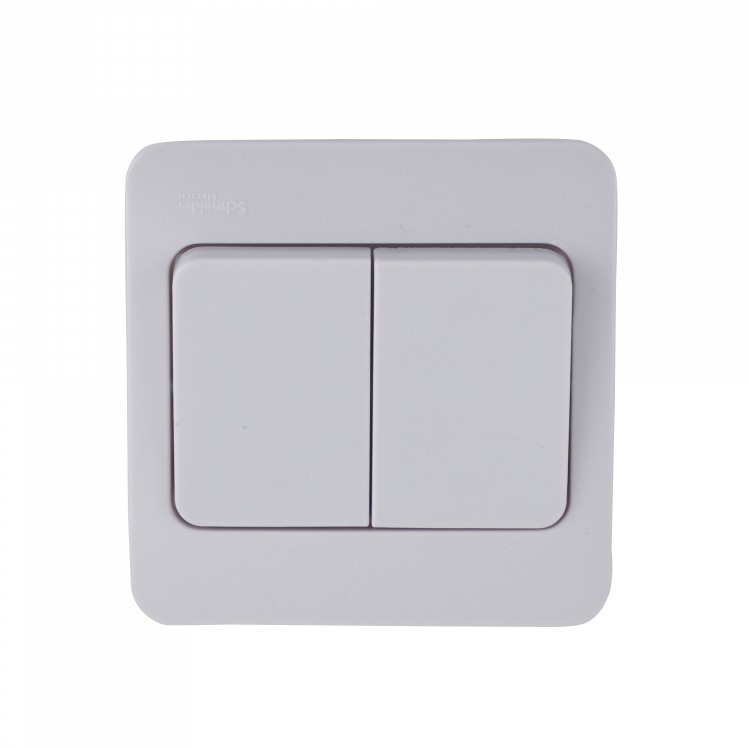

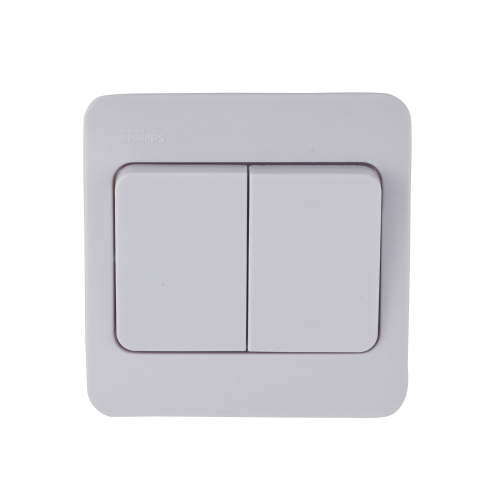

Image is for illustrative purposes only

Schneider Electric GGBL1022W Lisse 10AX 2G 2W Wide Rocker Switch White

Part: GGBL1022W
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - Wide rocker switch - 2 gangs 2 way - 10AX White.

  • Raised Rounded Profile
  • Concealed Fittings
  • Screw cap covers provided to allow for a sleek finish
  • Gently rounded rockers to compliment the curved profile
  • 7mm raised edge profile offering easy installation
  • Wall mounted
  • 10AX at 230V AC rated current
  • IP20 degree of protection
  • 2 gang 2 way switch

Nominal voltage :230V
Mounting method :Surface mounted
Assembly arrangement :Basic unit fully enclosed
Method of operation :Rocker
Colour :White
Halogen free :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Rated current :10A
Material qualifier :Other
Material :Other
Type of fastening :Screw mounting
Wiring system :Two-way switch
Number of rockers/gangs :2
RAL-number (similar) :9003
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :87mm
Height of device :28mm
Depth of device :87mm
Label space/information surface :Yes
