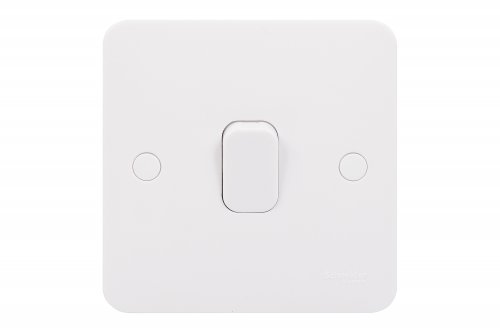

Image is for illustrative purposes only
|
 |
 |
 |
01482 589015
Schneider Electric GGBL1012S Lisse 10AX 1G 2W Switch White
Part: GGBL1012S
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Lisse - Plate switch - 1 gang 2 way - 10AX White.
- Raised rounded profile complimented by the curved rocker switch
- Durable anti-microbial urea construction
- Two sets of screw cap covers provided to complete the sleek finish
- Minimum back projection frees up space in the back box for cabling
- Cable markings allow you to check wire length
- Angled terminals for easier access
- The 7mm raised edge profile offers easy installation
- Concealed fittings
| Nominal voltage : | 230V |
| Mounting method : | Flush mounted |
| Assembly arrangement : | Basic unit fully enclosed |
| Method of operation : | Rocker |
| Colour : | White |
| Halogen free : | No |
| With mounting plate : | Yes |
| Connection type : | Screwed terminal |
| Illumination : | No |
| Feedback-signal contact : | No |
| Material : | Other |
| Type of fastening : | Screw mounting |
| Wiring system : | Two-way switch |
| Number of rockers/gangs : | 1 |
| Switching current for fluorescent lamps : | 10AX |
| Push button switch : | No |
| Washing machine switch : | No |
| Surface finish : | Matt |
| Degree of protection (IP rating) : | IP20 |
| Width of device : | 87mm |
| Height of device : | 87mm |
| Depth of device : | 24mm |
| Label space/information surface : | No |
| Number of module spaces (modular system) : | 1 |
