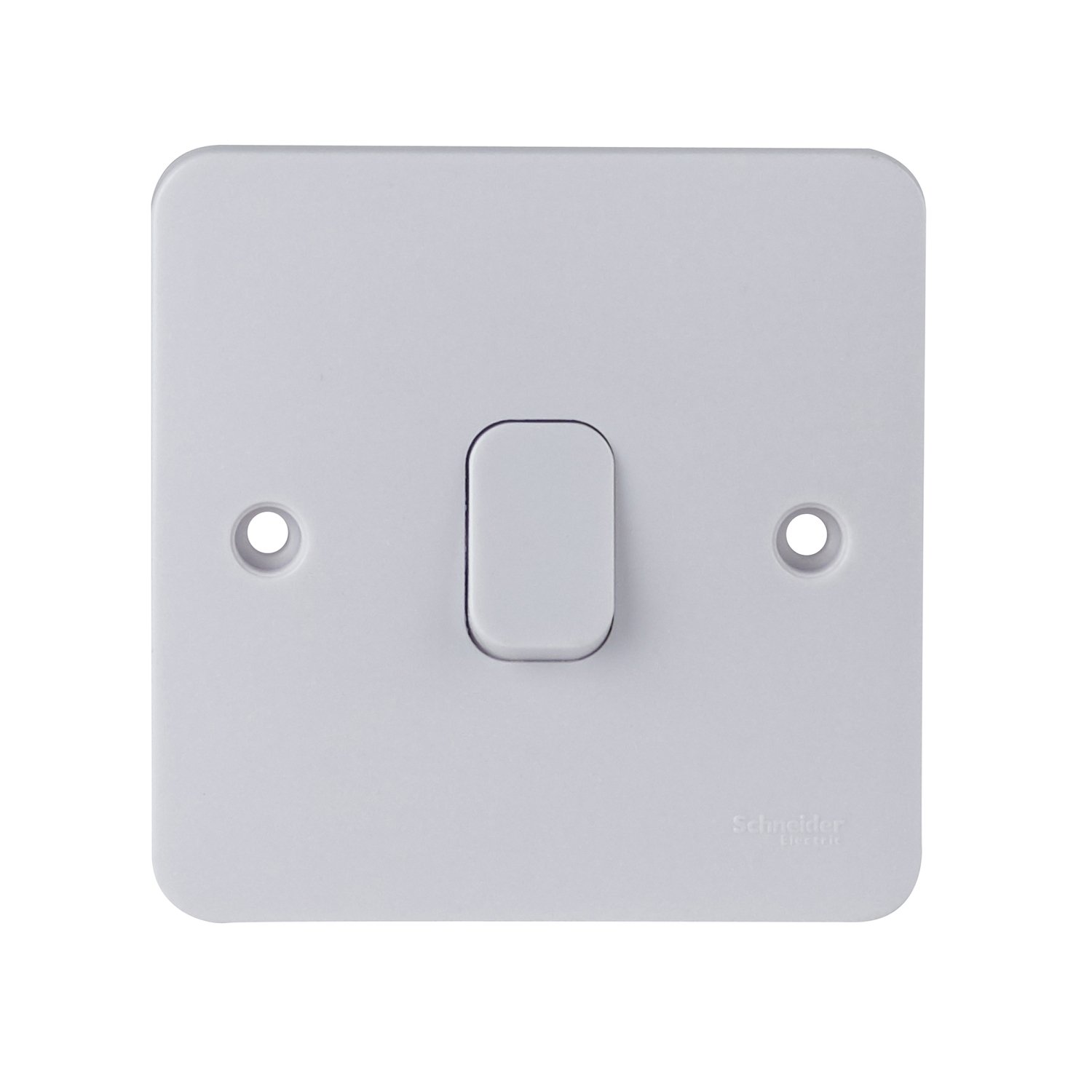

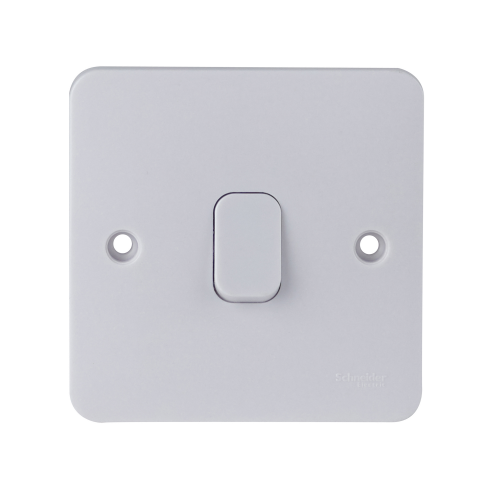

Schneider Electric GGBL1012R Lisse 10A 1G 2W Retr. Switch White
Part: GGBL1012R
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Lisse - Retractive plate switch - 1 gang 2 way - 10A White.
- Retractive switch with a raised rounded profile complimented by the curved rocker switch
- Concealed Fittings
- Durable Anti-Microbial Urea Construction
- Ideally suited for new construction and refurbishment projects
- Unique, innovative home owner accessories available
- Angled terminals for easier access
- The 7mm raised edge profile offers easy installation
- Concealed fittings
- Retractive switch returns to its original position once pressed
| Nominal voltage : | 230V |
| Mounting method : | Surface mounted |
| Assembly arrangement : | Basic unit fully enclosed |
| Method of operation : | Rocker |
| Colour : | White |
| Halogen free : | Yes |
| Connection type : | Screwed terminal |
| Illumination : | No |
| Surface protection : | Untreated |
| Rated current : | 10A |
| Material qualifier : | Other |
| Material : | Other |
| Type of fastening : | Screw mounting |
| Wiring system : | Two-way switch |
| Number of rockers/gangs : | 1 |
| RAL-number (similar) : | 9003 |
| Switching current for fluorescent lamps : | 10AX |
| Push button switch : | No |
| Washing machine switch : | No |
| Surface finish : | Matt |
| Degree of protection (IP rating) : | IP20 |
| Width of device : | 87mm |
| Height of device : | 24mm |
| Depth of device : | 87mm |
| Label space/information surface : | Yes |
