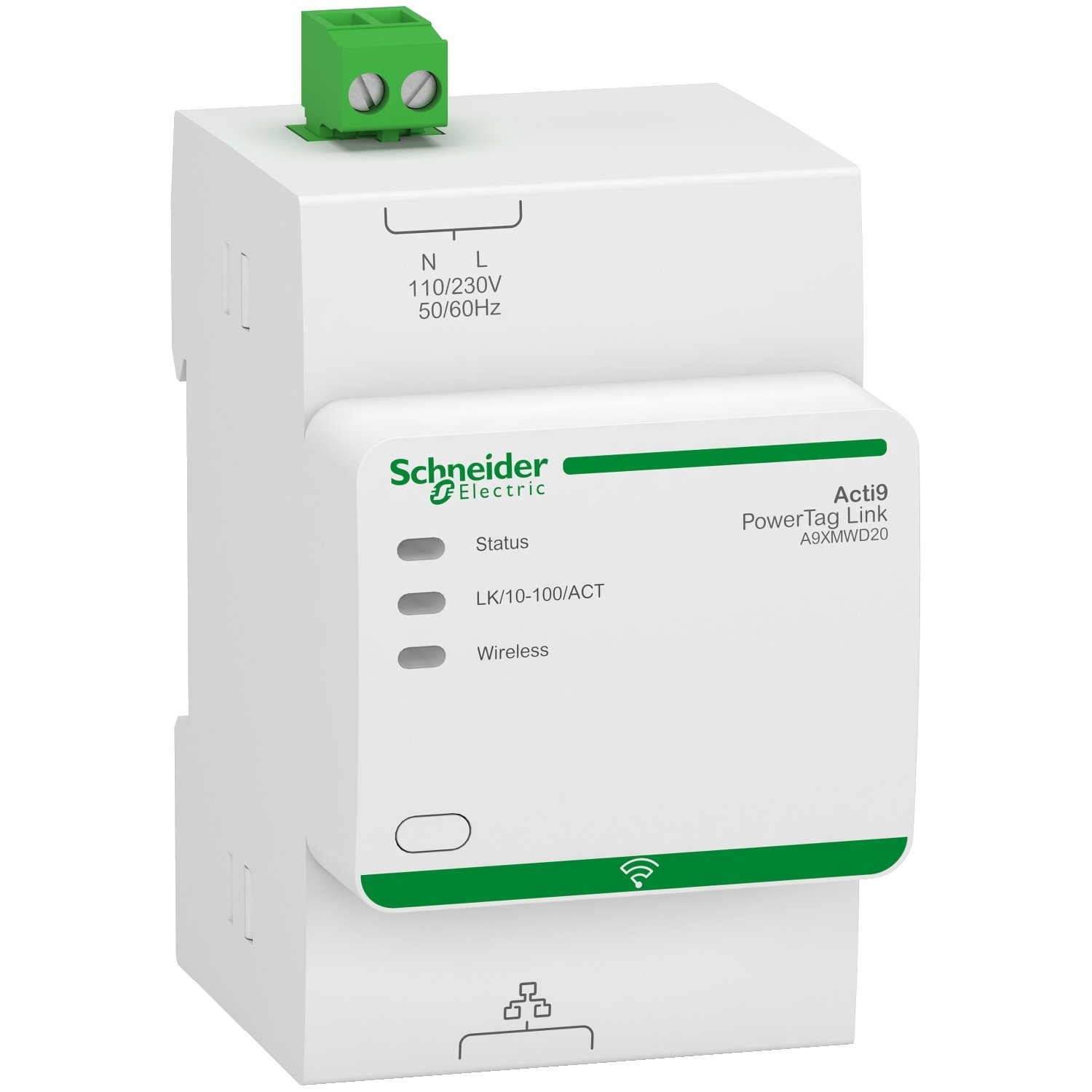

Image is for illustrative purposes only
|
 |
 |
01482 589015
Schneider Electric A9XMWD20 A9 PowerTag Link RF to IP gateway
Part: A9XMWD20
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Acti9 PowerTag Link - Wireless to Modbus TCP/IP Concentrator.
- This Acti 9 PowerTag Link is a Wireless to Modbus TCP/IP Concentrator smart communication module.
- Reduced cabling errors - saves space
- Real-time decisions – reduce downtime
- It has to be associated with a PowerTag wireless-communication energy sensor to provide circuit monitoring and diagnosis down to load level.
- The number of HW-interfaces industrial Ethernet is 1. Number of HW-interfaces Wireless is 1.
- Smart/connected breakers with no change in the switchboard footprint
| Width : | 54mm |
| Height : | 85mm |
| Depth : | 67.5mm |
| Suitable for safety functions : | No |
| Number of digital inputs : | 20 |
| Number of digital outputs : | 1 |
| Number of analogue inputs : | 0 |
| Number of analogue outputs : | 0 |
| Voltage type of supply voltage : | AC |
| Supporting protocol for LON : | No |
| Number of HW-interfaces industrial Ethernet : | 1 |
| Number of HW-interfaces RS-232 : | 0 |
| Number of HW-interfaces RS-422 : | 0 |
| Number of HW-interfaces RS-485 : | 0 |
| Number of HW-interfaces serial TTY : | 0 |
| Number of HW-interfaces USB : | 0 |
| Number of HW-interfaces parallel : | 0 |
| Number of HW-interfaces other : | 0 |
| With optical interface : | No |
| Supporting protocol for TCP/IP : | Yes |
| Supporting protocol for ASI : | No |
| Supporting protocol for PROFIBUS : | No |
| Supporting protocol for CAN : | No |
| Supporting protocol for INTERBUS : | No |
| Supporting protocol for KNX : | No |
| Supporting protocol for MODBUS : | Yes |
| Supporting protocol for Data-Highway : | No |
| Supporting protocol for DeviceNet : | No |
| Supporting protocol for SUCONET : | No |
| Supporting protocol for other bus systems : | No |
| Analogue input, current : | No |
| Analogue input, voltage : | No |
| Analogue input, resistor : | No |
| Analogue input, resistor temperature : | No |
| Analogue input, thermocouple : | No |
| Analogue input signal configurable : | No |
| Type of digital output : | Other |
| Type of electric connection : | Screw connection |
| Rail mounting possible : | Yes |
| Explosion safety category for gas : | None |
| Explosion safety category for dust : | None |
| Fieldbus connection over separate bus coupler possible : | No |
| System accessory : | No |
| Appendant operation agent (Ex ia) : | No |
| Appendant operation agent (Ex ib) : | No |
| Degree of protection (IP rating) : | IP20 |
| Supporting protocol for SERCOS : | No |
| Supporting protocol for INTERBUS-Safety : | No |
| Number of HW-interfaces PROFINET : | 0 |
| Number of HW-interfaces Wireless : | 1 |
| Front built-in possible : | Yes |
| Rack-assembly possible : | No |
| Wall mounting/direct mounting : | No |
| Radio standard Bluetooth : | No |
| Radio standard WLAN 802.11 : | No |
| IO link master : | No |
| Performance level acc. to EN ISO 13849-1 : | None |
| Supporting protocol for AS-Interface Safety at Work : | No |
| Supporting protocol for DeviceNet Safety : | No |
| Supporting protocol for EtherNet/IP : | No |
| Supporting protocol for Foundation Fieldbus : | No |
| Supporting protocol for PROFINET CBA : | No |
| Supporting protocol for PROFINET IO : | No |
| Supporting protocol for PROFIsafe : | No |
| Supporting protocol for SafetyBUS p : | No |
| Supply voltage AC 50 Hz : | 110 to 230V |
| Supply voltage AC 60 Hz : | 110 to 230V |
| Analogue outputs configurable : | No |
| Radio standard GPRS : | No |
| Radio standard GSM : | No |
| Radio standard UMTS : | No |
| SIL according to IEC 61508 : | None |
