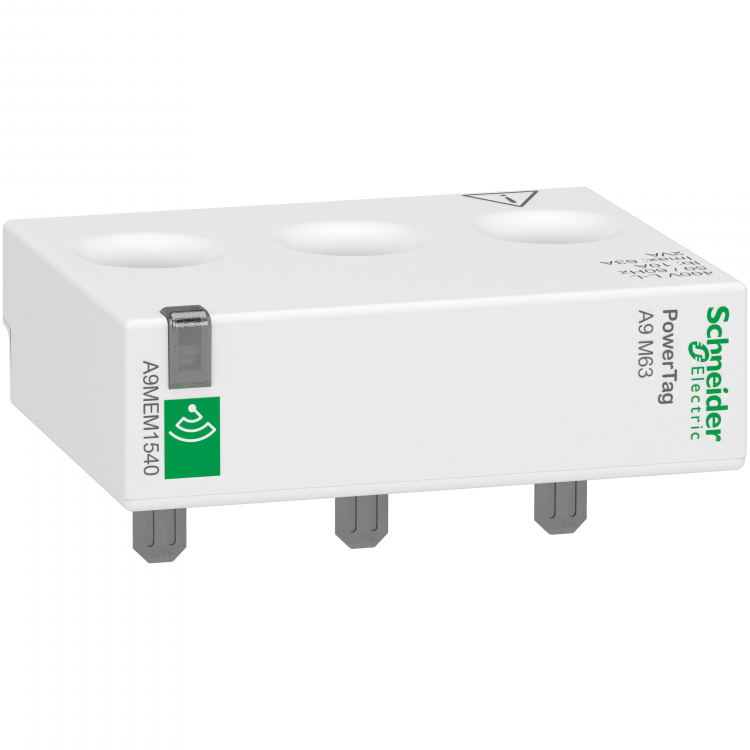

Image is for illustrative purposes only

Schneider Electric A9MEM1540 PowerTag Energy M63 3P

Part: A9MEM1540
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

PowerTag Acti9 Monoconnect 3P Top and Bottom position Max 63A Energy Sensor.

  • This PowerTag A9 M63 3P for Acti 9 and Multi 9 Monoconnect offers is a Class 1 wireless-communication energy sensor.
  • The Saturation current is 130A. The Starting current is 40mA.
  • It has to be associated with a concentror PowerTag Link or SmartLink SI to provide circuit monitoring and diagnosis down to load level.
  • It sends a voltage loss alarm and the current-per-phase value before being de-energized.
  • It incorporates accurate real-time measurements of active energy, active power, current, power factor and voltage.
  • It is dedicated to 3P devices with 18mm pitch between phase and neutral, rating less than or equal 63A.
  • It can be either mounted on the top or the bottom of the protective device.
  • The Imax maximum current is 63A. The Ib Base current is 10A.
  • The Saturation current is 130A. The Starting current is 40mA.
  • The Un rated voltage is Phase-to-phase 400VAC +/- 20%.

Mounting method :Plug-in technique
Model :Direct measurement
Type of indication :None
Frequency :50 to 60Hz
Max. current (Imax) :63A
Width in number of modular spacings :3
Type of meter :Electronic
Degree of protection (IP rating) :IP20
Interface type :Other
Energy type :Effective power and blind power
Escapement mechanism :No
Calibrated :Yes
Pulse output :None
Accuracy class :A
Pole type :Three conductor
Measuring type load profile :No
EEC40 signature :No
With lock code :No
Nominal voltage (Un) N-L :220 to 240V
Nominal voltage (Un) L-L :400 to 415V
Nominal current (In) :63A
Degree of protection (NEMA) :1
