Schneider Electric A9MEM1520

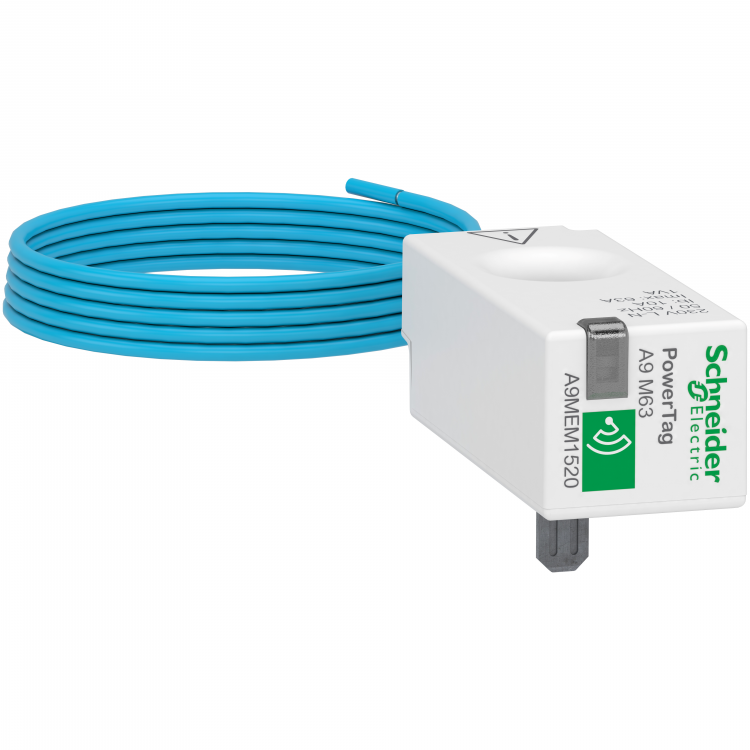

Image is for illustrative purposes only

Schneider Electric A9MEM1520 PowerTag Energy M63 1PW

Part: A9MEM1520
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

PowerTag Acti9 Monoconnect 1P+W Top and Bottom position Max 63A Energy Sensor.

  • This PowerTag A9 M63 1PW for Acti 9 and Multi 9 Monoconnect offers is a Class 1 wireless-communication energy sensor.
  • The Saturation current is 130A. The Ist Starting current is 40mA.
  • It has to be associated with a concentror PowerTag Link or SmartLink SI to provide circuit monitoring and diagnosis down to load level.
  • It sends a voltage loss alarm and the current-per-phase value before being de-energized.
  • It incorporates accurate real-time measurements of active energy, active power, current, power factor and voltage.
  • It is dedicated to 1P devices rating less than or equal 63A. The neutral blue wire is to be connected to a neutral terminal block.
  • It can be either mounted on the top or the bottom of the protective device.
  • The Imax maximum current is 63A. The Ib Base current is 10A.
  • The Saturation current is 130A. The Ist Starting current is 40mA.
  • The Un rated voltage is Phase-to-neutral 230VAC +/- 20%.

Mounting method :Plug-in technique
Model :Direct measurement
Type of indication :None
Frequency :50 to 60Hz
Max. current (Imax) :63A
Width in number of modular spacings :1
Type of meter :Electronic
Degree of protection (IP rating) :IP20
Interface type :Other
Energy type :Effective power and blind power
Escapement mechanism :No
Calibrated :Yes
Pulse output :None
Accuracy class :A
Pole type :Single phase
Measuring type load profile :No
EEC40 signature :No
With lock code :No
Nominal voltage (Un) N-L :220 to 240V
Nominal current (In) :63A
Degree of protection (NEMA) :1
