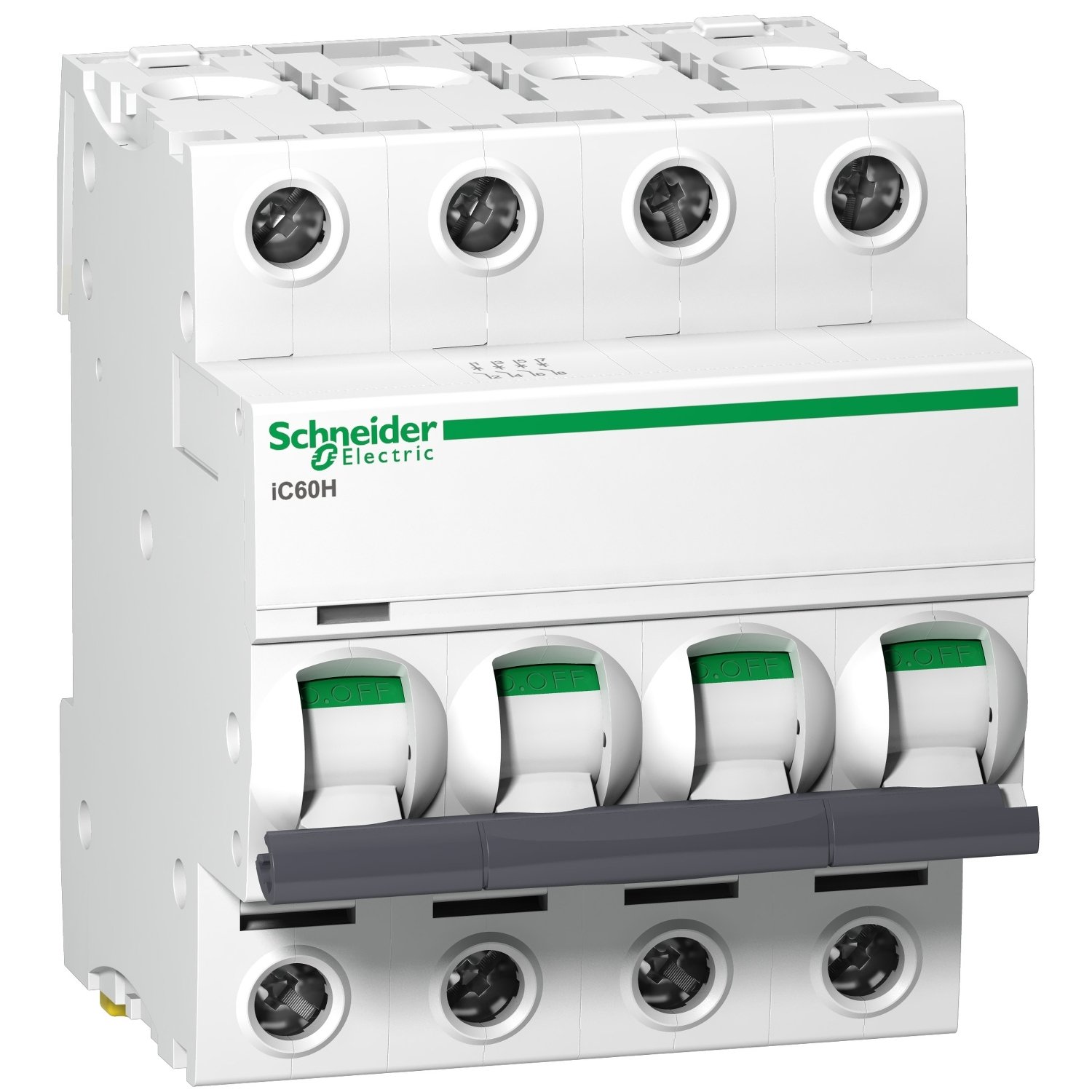

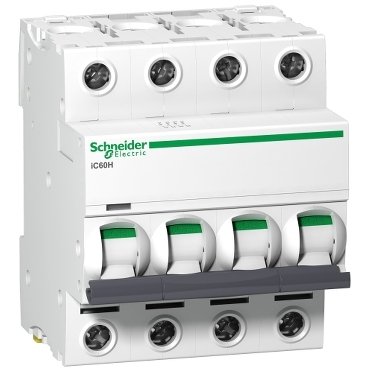

Schneider Electric A9F54450 Acti9 iC60H 4P C 50A MCB

Part: A9F54450
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Acti9 iC60H 4P 50A C Miniature Circuit breaker.

  • This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals.
  • It is a 4P circuit breaker with 4 protected poles, 50A rated current and C tripping curve.
  • The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard.
  • It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.
  • This miniature circuit breaker protects circuit against short circuit and overload current.
  • Padlockable
  • Green Premium Product

Voltage type :AC/DC
Recess depth :44.5mm
Rated current :50A
Rated voltage :415V
Frequency :50 to 60Hz
Tripping characteristic (type/curve) :C
Rated insulation voltage Ui :500V
Current limiting class :3
Over voltage category :4
Pollution degree :3
Width in number of modular spacings :4
Degree of protection (IP rating) :IP20
Number of protected poles :4
Concurrently switching N-neutral :No
Connectable conductor cross section solid-core :1 to 35mm2
Connectable conductor cross section multi-wired :1 to 25mm2
Ambient temperature during operating :35 to 70°C
Additional equipment possible :Yes
Number of poles (total) :4
Rated short-circuit breaking capacity Icn EN 60898 at 400 V :10kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V :30kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V :15kA
Rated impulse-withstand voltage (Uimp) :6kV
