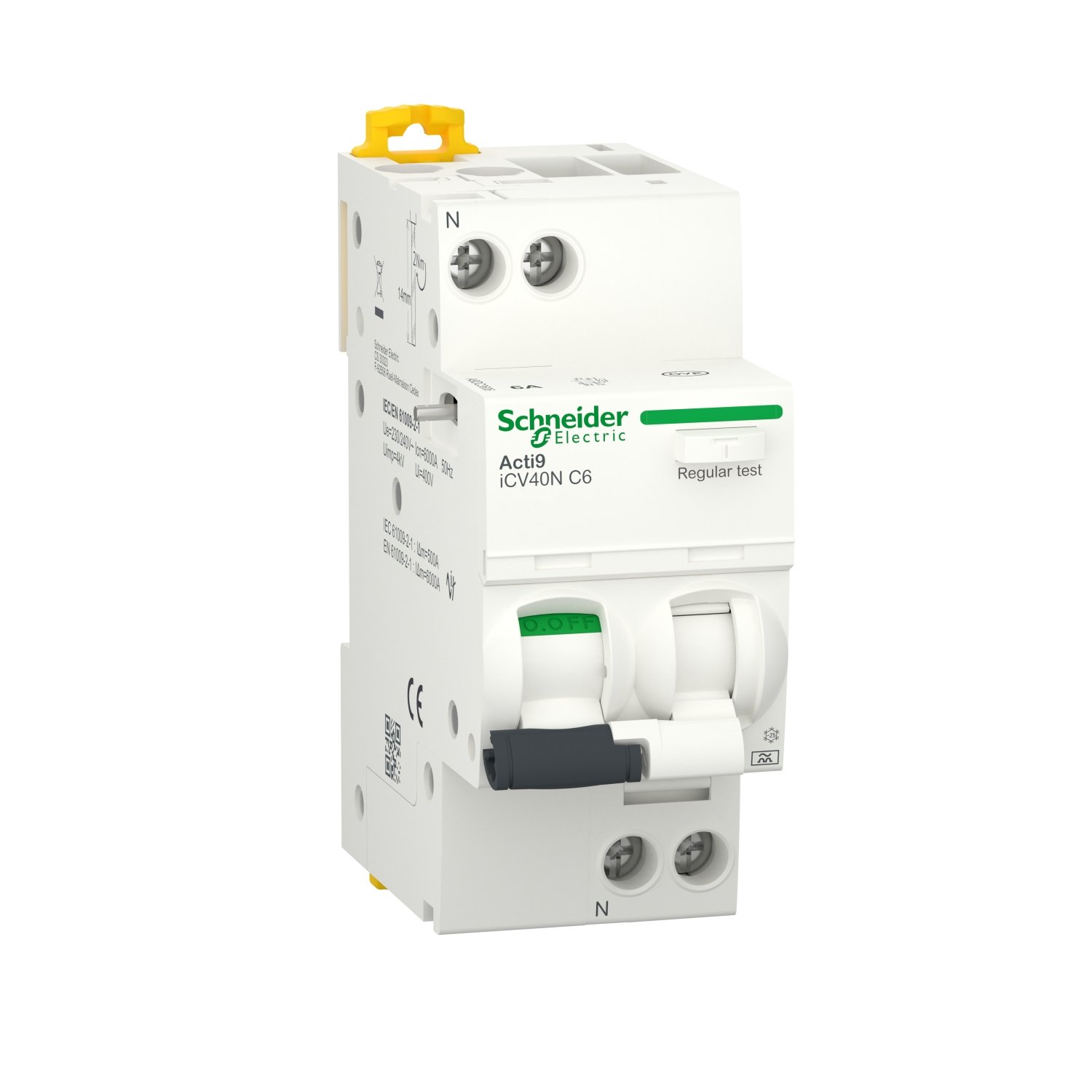

Image is for illustrative purposes only
Schneider Electric A9DE3610
Schneider Electric A9DE3610
Schneider Electric A9DE3610
Schneider Electric A9DE3610

Schneider Electric A9DE3610 ACTI 9 iCV40N 1PN C 10A 30mA AC RCBO

Part: A9DE3610
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

residual current breaker with overcurrent protection (RCBO), Acti9 iCV40, 1P+N, 10 A, C Curve, 6000 A, 30 mA, AC type.

  • This Acti9 iCV40 is a modular residual current breaker with overcurrent protection (RCBO).
  • It is a 1P+N circuit breaker with 1 protected pole and 10A In rated current and C tripping curve.
  • The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous.
  • The Icn rated short circuit breaking capacity is up to 6000A according EN/IEC 61009-2-1 standard.
  • This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.

Voltage type :AC
Recess depth :44mm
Rated current :10A
Rated voltage :230V
Tripping characteristic (type/curve) :C
Rated insulation voltage Ui :400V
Rated fault current :0.03A
Leakage current type :AC
Surge current capacity :0.25kA
Current limiting class :3
Over voltage category :3
Pollution degree :3
Width in number of modular spacings :2
Frequency :50/60 Hz
Degree of protection (IP rating) :IP20
Number of protected poles :1
Concurrently switching N-neutral :Yes
Connectable conductor cross section solid-core :1 to 16mm2
Connectable conductor cross section multi-wired :1 to 10mm2
With interlocking device :Yes
Ambient temperature during operating :-5 to 60°C
Number of poles (total) :2
Anti-nuisance tripping version :No
Rated impulse-withstand voltage (Uimp) :4kV
Rated short-circuit breaking capacity Icn according to EN 61009-1 :6kA
Disconnection characteristic :Undelayed
Rated short-circuit breaking capacity according to EN 61009 :6kA
