Schneider Electric A9A26946

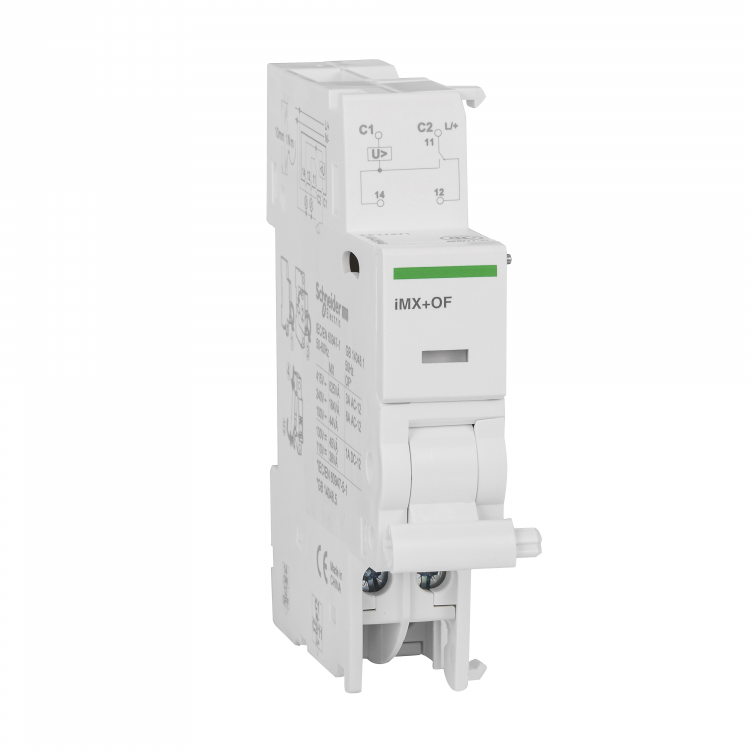

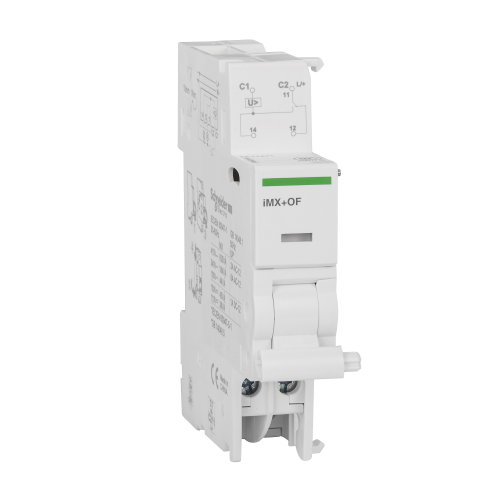

Image is for illustrative purposes only

Schneider Electric A9A26946 ACTI9 IMX-OF 100-415VAC 110-130VDC shunt trip release

Part: A9A26946
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 100...415 VAC.

  • This Acti 9 MX+OF electrical tripping auxiliary for is a shunt trip release.
  • The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC.
  • Designed for emergency stoppage
  • 100...415 V AC 50/60 Hz
  • 110...130 V DC
  • Clip-on DIN rail mounting mode
  • EN/IEC 60947-5-1
  • The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC.
  • The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC.
  • There is a mechanical state indicator light, red on the front face.

Rated voltage :415V
Rated switch current :6A
Number of fault-signal switches :0
Device fitting :Miniature circuit breaker (MCB)
Number of contacts as normally closed contact :0
Number of contacts as normally open contact :0
Number of contacts as change-over contact :1
Suitable for max. number of poles main contact unit (total) :4
Suitable for max. current main contact unit :63A
