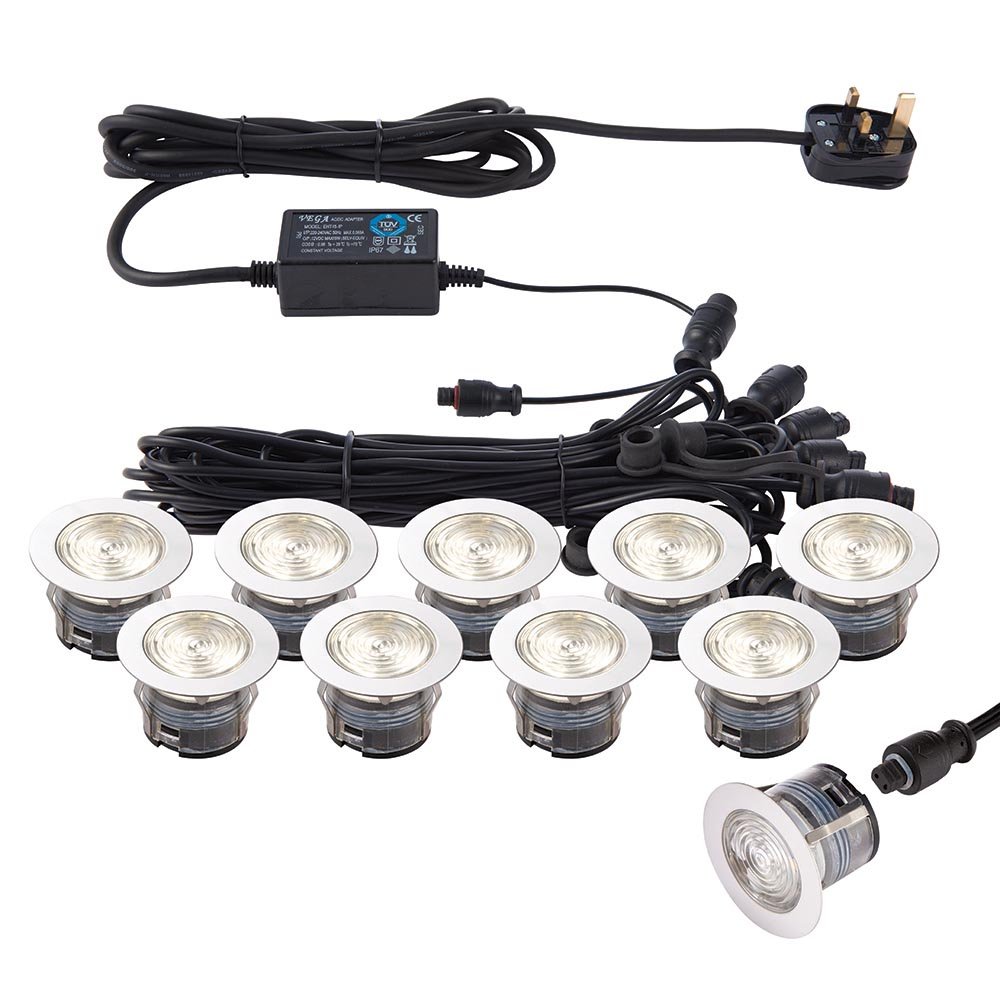

Saxby 73349 IkonPRO CCT 3000K/4000K 45mm IP67 0.75W cct deck light kit

Part: 73349
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

An addition to the popular IkonPRO recessed LED decking kit range, within each head there is the choice of 3000K or 4000K in one kit or the other kit offers 6500K or blue.

Using the unique design of removable and interchangeable heads to change colour, you simply lift the LED head out of the connector, turn the head 180° and reinsert into the loom.

Designed to be fitted and wired during the decking build stage without the heads, the supplied rubber caps protect the fitting from the elements until the decking is complete. Available in a variety of sizes and colours.

  • Suitable for indoor or outdoor use
  • Polished stainless steel & clear pc
  • Constructed from stainless steel (304) & polycarbonate
  • Super bright SMD LED technology
  • Innovative new fitting method
  • Improved lens design

Product Wattage:10 x 0.75W
Product Lumen:410
Lumen/W:55
Kelvin:3000/4000
Energy Rating:G
Dimmable:No
Beam Angle:120º
Power Factor:0.46
CRI:80
Lifetime (Hours):25000
LED chip:San'an
SDCM:6
Driver Type:Constant Voltage 12V, 1.25A, Max. 15W
Inrush Current at Start Up:18.9A
Product Voltage:220-240V
Hertz:50/60
Surge Protection (KV):1
Operating Temp.:-20 to 40 Degree
Product Weight (KG):1.05
Cut-out Dia(mm):32
Minimum Cavity Depth (mm):80
Cable Length (m):3
Cable Spec.:H05RN-F
Class:3
