Q-NECT QOE8343BLK 4 pole 3 way 24A (M16+M20) connection box

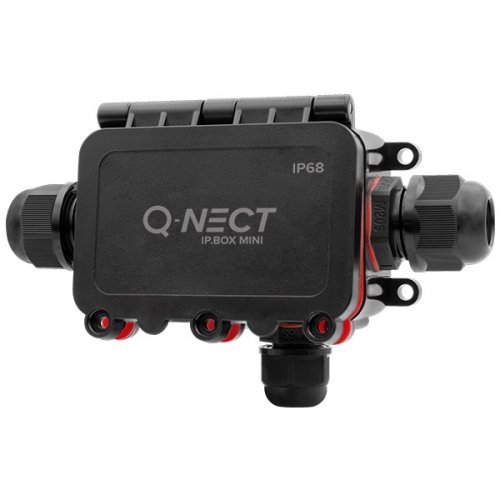

Image is for illustrative purposes only

Q-NECT QOE8343BLK 4 pole 3 way 24A (M16+M20) connection box

Part: QOE8343BLK
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

The Unicrimp Q-NECT IP rated connection boxes come pre-installed with IP rated nylon glands. The nylon glands provide a dust and watertight seal, excellent strain relief and cable protection. The IP68 Connection Box prevents exposure with a great sealing performance. It can withstand dust, dirt and sand, making it perfect for multiple installations.

To aid installation, the hinged lid enables quick and easy access with suitable fixing points provided, allowing you to fix the connection box wherever is best suited.

Length (mm) :141
Width (mm) :88
Height (mm) :37
Minimum Cable Diameter (mm) :5
Maximum Cable Diameter (mm) :8
Colour :Black (RAL 9017) & Red (RAL 3020)
Maximum Voltage (V) :450
Maximum Current Rating (A) :24
Tightening Torque (Nm) :2.5
Ingress Protection :IP68 (Tested to 1 Metre at 60 Minutes)
Temperature Rating (°C) :-40 to +105
Working Temperature (°C) :60
Material -Body Components :Polycarbonate
Material -Membranes :Silica Gel
Entry :2 x M20 inline entries and 1 x M16 entry with seals and membranes. 4 fixing points.
Connections :4 pole connector block with screw terminals
