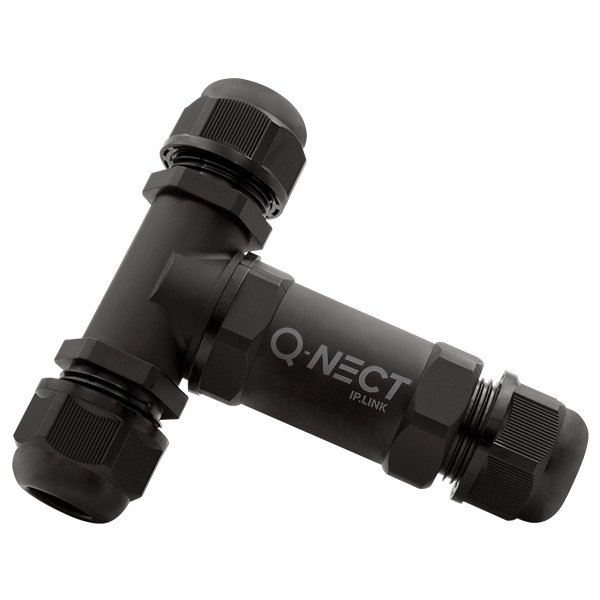

Q-NECT QOE3053BLK 5 pole 2 way 24A IP68 T-connector
Image is for illustrative purposes only

Q-NECT QOE3053BLK 5 pole 2 way 24A IP68 T-connector

Part: QOE3053BLK
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

High quality and robust materials help ensure the connectors withstand the harshest of environments. Whatever the installation, your cables will be fully secure. The T-Connectors are supplied with 5 pole terminals. This provides the installer with a variety of wiring options, covering a large range of installations.

The 'T' shape connector facilitates the install of an inline switch or additional powered output whilst also offering IP68 weatherproof protection, making it perfect for multiple installations.

Length (mm) :106
Width (mm) :98
Minimum Cable Diameter (mm) :6
Maximum Cable Diameter (mm) :14
Diameter (mm) :30
Colour :Black (RAL 9017) & Red (RAL 3020)
Maximum Voltage (V) :450
Maximum Current Rating (A) :24
Tightening Torque (Nm) :3.8
Ingress Protection :IP68 (Tested to 1 Metre at 60 Minutes)
Temperature Rating (°C) :-40 to +105
Working Temperature (°C) :100
Material -body components :Nylon (PA66)
Material -seals :Silica Gel
Cable entry :3 x PG16 entries with seals
Connections :5 pole using screw terminals
