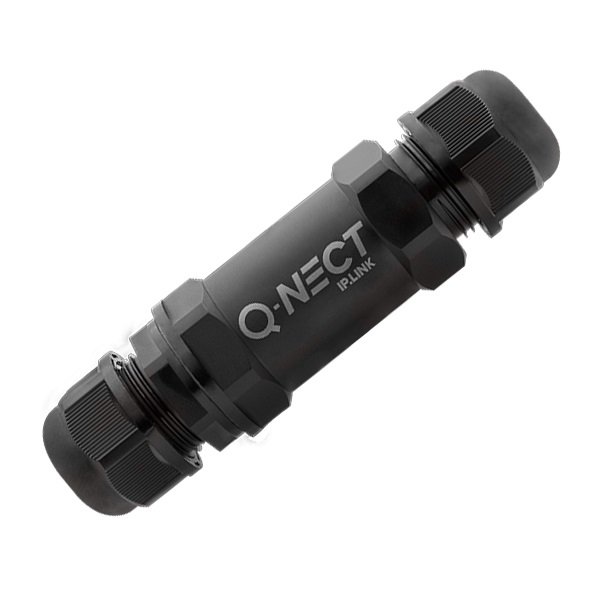

Q-NECT QOE3052BLK 5 pole 2 way 24A IP68 inline connector
Image is for illustrative purposes only

Q-NECT QOE3052BLK 5 pole 2 way 24A IP68 inline connector

Part: QOE3052BLK
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

High quality and robust materials help ensure the connectors withstand the harshest of environments. Whatever the installation, your cables will be fully secure. The IP68 Inline Connector offers a quick and simple solution for outdoor and underwater fixtures. Suitable for extending or repairing existing cables while maintaining its IP68 weatherproof protection.

Length (mm) :112
Minimum Cable Diameter (mm) :6
Maximum Cable Diameter (mm) :14
Diameter (mm) :30
Colour :Black (RAL 9017) & Red (RAL 3020)
Maximum Voltage (V) :450
Maximum Current Rating (A) :24
Tightening Torque (Nm) :3.8
Ingress Protection :IP68 (Tested to 1 Metre at 60 Minutes)
Temperature Rating :(°C) -40 to +105
Working Temperature :(°C) 100
Material -body components :Nylon (PA66)
Material -seals :Silica Gel
