Project EV Dual Floor electric vehicle charger

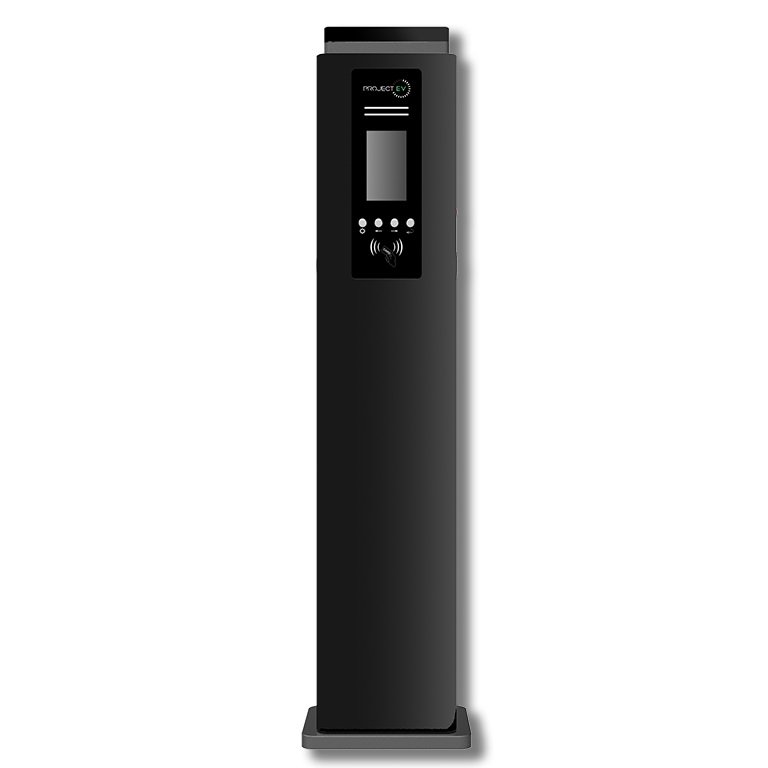

Image is for illustrative purposes only
Project EV Dual Floor electric vehicle charger
Dimensions

Project EV EVA-07D-SE-RFID 7.3kW Pro Earth Floor AC Charger Dual Gun RFID

Part: EVA-07D-SE-RFID
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

The Project EV EVA-07D-SE-RFID is a single-phase dual AC charging unit, packed with features, such as a no earth spike required installation. The dual gun charger is perfect for both domestic and commercial use with a market-leading five-year warranty.

This charger also has time shifting capabilities giving you the opportunity to save £100’s per year*, a cable lock system for added security, free mobile monitoring app, and a dynamic load balancing system.

The EVA-07D-SE-RFID is ready out of the box and perfect for any domestic electric vehicle charging. The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase. Optional ground mounts (EV-GMEVA-D-2) & optional protection posts (EV-POST2) are available to purchase.

*The amount of potential savings you can save per year depends on your energy provider, and your set energy tariff rates.

Input Amps:63a Single Phase
Input voltage:230V AC
Input frequency:50/60HZ
Output voltage:230V AC
Max. output power:7KW per socket
Max. output current:32A per socket
Charging interface type:IEC 62196-2, Type 2
Over voltage protection:Yes
Under voltage protection:Yes
Over load protection:Yes
Short circuit protection:Yes
Earth leakage protection:Yes
Over-temp protection:Yes
Surge protection:Yes
PEN fault protection:Yes
LCD:Yes
Ethernet/WIFI/4G:Yes/Yes/Option
Outlet Type:Type 2 (socket)
Number of sockets:2
RCBO:Type A +6mA DC fault current protection (Equivalent to Type B)
LED Indicator light:Yes
Emergency stop button:Yes
MID Metering:Yes
RFID:Yes
Protection degree:IP65
Environment temperature:-25C to +50C
Relative humidity:0-95% non-condensing
Cooling:Natural air cooling
Standby power consumption:<8W
IK Rating:IK10
Dimension (W/H/D):320/1635/175mm
Weight:<30Kg
Ground-mounting:Option. EV-GMEVA-D-2
Recommended base size (W/H/D):600/600/400mm
CE:Yes
SA8000 Accredited:Yes
OZEV Approved:Yes

Make an enquiry

...
