nVent HOFFMAN HDTB204012 hygienic design terminal box, 200x400x120

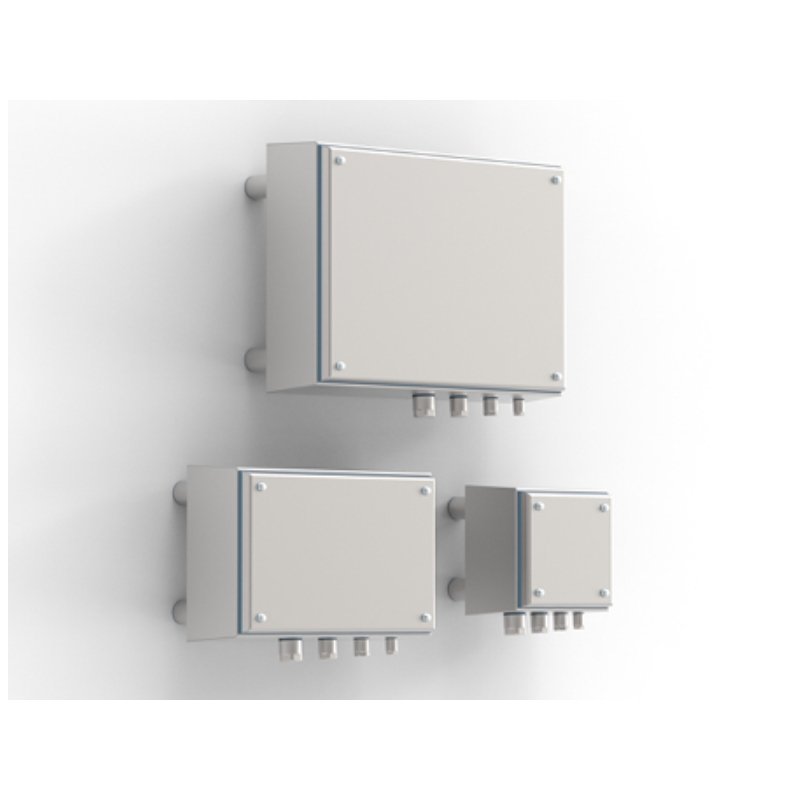

Image is for illustrative purposes only
nVent HOFFMAN HDTB204012 hygienic design terminal box, 200x400x120
nVent HOFFMAN HDTB hygienic design terminal boxes

nVent HOFFMAN HDTB204012 hygienic design terminal box, 200x400x120

Part: HDTB204012
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Height :200 mm
Width :400 mm
Depth :120 mm
Material :AISI 304L pre-grained stainless steel.
Body and cover :1.5 mm.
Body :Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation.
Cover :Folded and seam welded. Sides sloped at 3°. AISI 316 HD bolts with blue silicone gasket included.
Gasket :A one piece removable silicone gasket with molded corners helps ensure proper sealing, and makes removing and replacing it faster and easier for cleaning and maintenance operations. The silicone is FDA 21 CFR 177.2600 compliant. Colour blue (RAL 5010).
Cable access :No gland openings as standard to minimize hygiene risks.
Earthing :M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
Finish :400 pre-grained stainless steel, polished to Ra < 0.8 µm.
Protection :Corresponds with IP 66/69 | TYPE 4X, 13 | IK08.
Delivery :Body with cover and mounting accessories
