nVent HOFFMAN BG01
Image is for illustrative purposes only

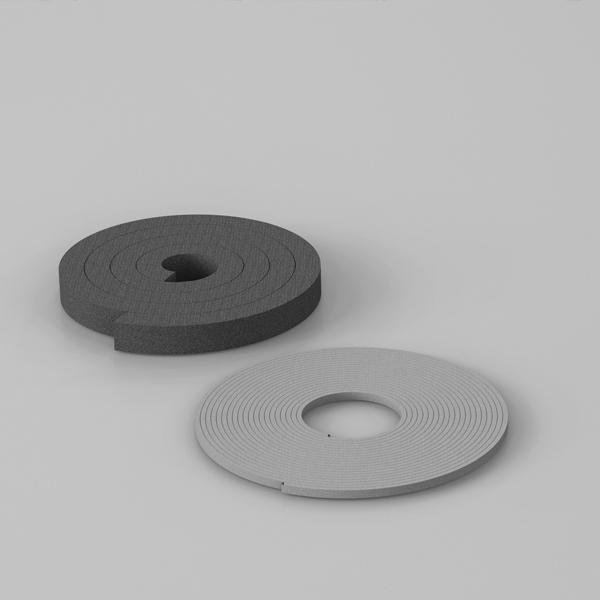

nVent HOFFMAN BG01 Gasket kit bottom plate

Part: BG01
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Gasket kit bottom plate, and cables, 6m gasket and 1,6 m foam.

Description:The bottom of the enclosure is sealed by the use of an adhesive gasket applied on to the frame around the openings at the bottom of the enclosure. The cables are sealed by the addition of adhesive foam placed between the bottom plates. The elasticity and the size of this foam ensures a tight seal around most cables.
Pack quantity:1.6 m adhesive foam (30 x 25 mm) and 6 m adhesive gasket (4.5 x 8 mm). For 1600 mm wide enclosures please order 2 sets.
Material :Plastic
Colour :Grey
