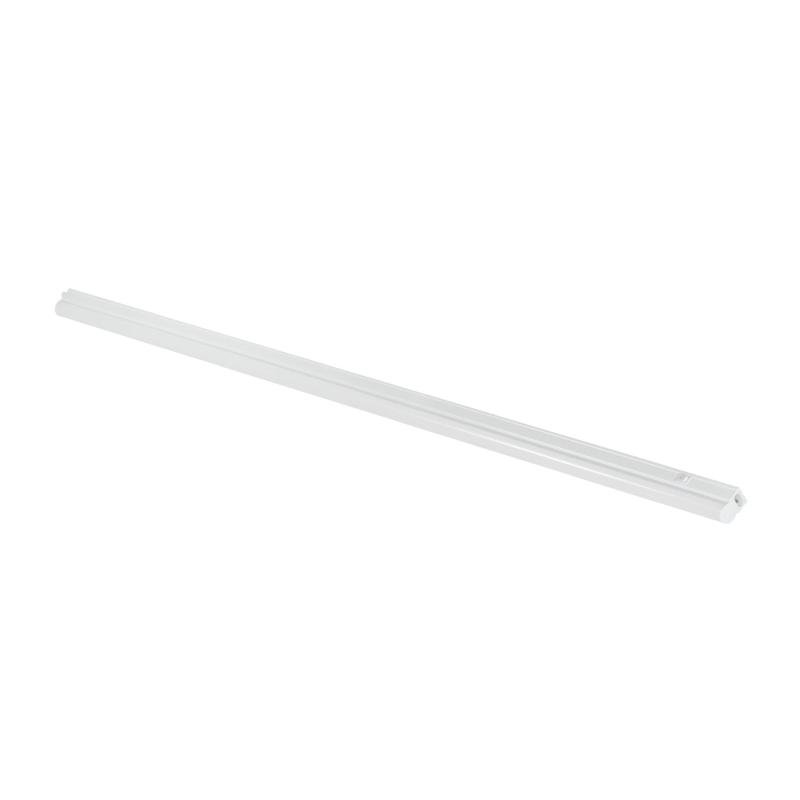

JCC JC83307 Undercabinet LED Batten IP20 15W 1120mm 4000K White PC c/w 1m lead.

Part: JC83307

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Slim line profile LED Battens which are a direct replacements for T5 fluorescent, 3000K or 4000K options with individual on/off switch on each luminaire. Four different lengths of 220mm, 520mm, 820mm or 1120mm to suit various applications. Can be connected end-to-end for a continuous run or linked using leads which are available in three lengths, 250mm, 500mm or 1000m also supplied as standard with 1000mm mains input cable.

End-to-end connection
Three link leads available in 250mm, 500mm and 1000mm lengths
Slim line profile
On/off switch on each luminaire
Supplied as standard with 1000mm mains cable

Protection class :	II
Width :	36mm
Connection type :	Screwless terminal
Housing colour :	White
Voltage type :	AC
With movement sensor :	No
Control gear :	LED driver constant current
Colour rendering index (CRI/Ra) :	80-89
With switch :	Yes
Number of poles :	2
Length :	1120mm
Height/depth :	22mm
Light source type :	LED non-replaceable
Electrical connection with connector system :	Yes
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP20
Lamp included :	Yes
Control gear included :	Yes
Colour temperature :	4000K
Maximum system power :	15W
Rated luminous flux acc. IEC 62722-2-1 :	1750Lm
Colour of light :	White
Type of cabling :	Through wiring included
Dimming 0-10 V :	No
Dimming 1-10 V :	No
Dimming DALI :	No
Dimming DMX :	No
Dimming potentiometer (integrated) :	No
Dimming LineSwitch :	No
Dimming manufacturer's proprietary system :	No
Dimming DSI :	No
Power factor :	0.5
