JCC JC72306EMSD Skytile Surface Linear IP20 1500mm LED 60W 4000K Microwave Step dimmable

Part: JC72306EMSD

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Shallow design with secure anti-tamper fixings, outperforms 2x58W T8 fluorescent. Ideal for lower mounting heights, easy to clean wipeable surface. Can be suspended with 1.5m wire suspension kit. Emergency, DALI, 1-10V, microwave options.

Outperforms 2x58W T8 fluorescent
Secure anti-tamper design
Shallow design
ideal for lower mounting heights
Easy to clean wipeable surface
1.5m wire suspension kit available

Mounting method :	Ceiling surface mounting
Protection class :	I

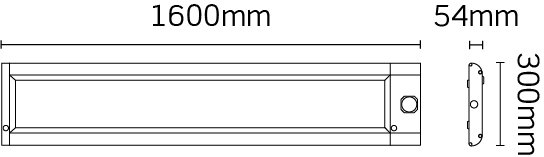

Width :	300mm
Housing colour :	White
Length :	1600mm
Height/depth :	54mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP20
Colour temperature :	4000K
Maximum system power :	60W
Rated luminous flux acc. IEC 62722-2-1 :	5100Lm
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Nominal operation time :	0 to 3 Hour
Power factor :	0.98
