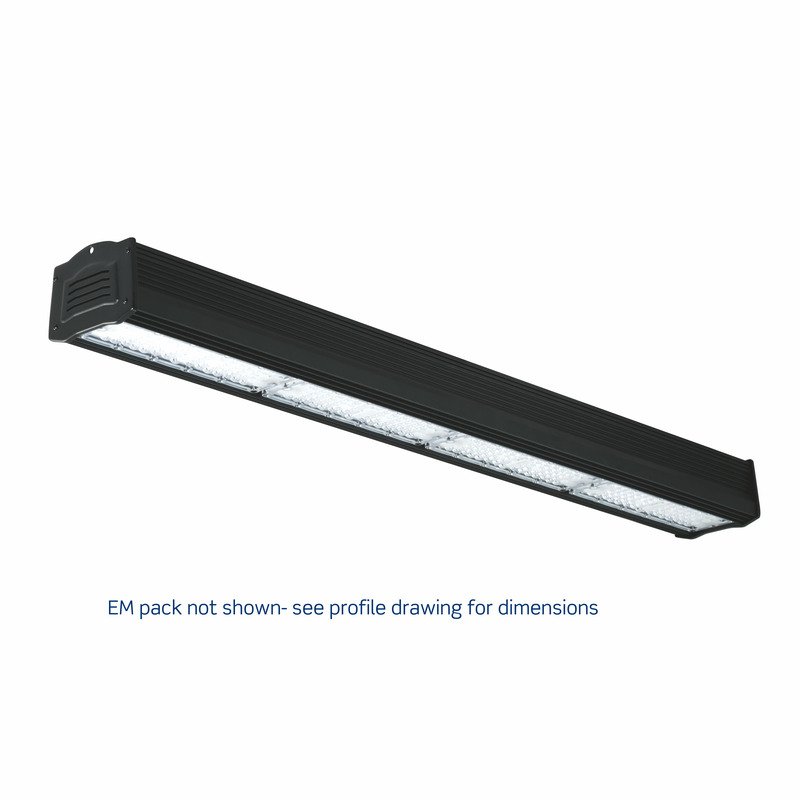

JCC JC71933/30X60EM Toughbay Linear 200W 30° x 60° Beam 1-10V Dimmable Emergency

Part: JC71933/30X60EM

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Ultra efficient up to 140 lumens per circuit WattIP65 protection against dust and moistureMultiple lenses available1-10V dimmable as standard30°x 60°, 50° and 80° lens optionsuitable for racking applicationsStep dimming available with remote control.

Ultra efficient up to 140 lumens per circuit Watt
IP65 protection against dust and moisture
Multiple lenses available
1-10V dimmable as standard
30°x 60°, 50° and 80° lens option
suitable for racking applications
Step dimming available with remote control

Mounting method :	Pendant
Protection class :	I
Width :	125mm
Housing colour :	Black
Voltage type :	AC
Control gear :	LED driver constant current
Number of poles :	4
Length :	991mm
Height/depth :	156mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Impact resistance (IK rating) :	IK10
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
Maximum system power :	200W
Rated luminous flux acc. IEC 62722-2-1 :	28000Lm
Type of cabling :	Ending
Rated ambient temperature acc. IEC62722-2-1 :	-30 to 45°C
Light distribution :	Diffuser
Power factor :	0.95
