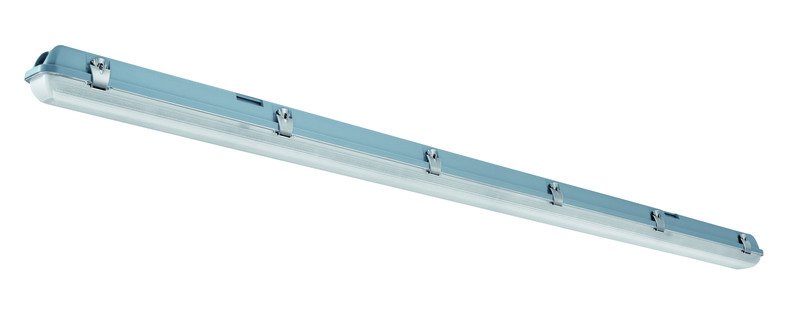

JCC JC71555FRDALI ToughLED weatherproof 5ft Single IP65 4000K 27W 3400Lm Frosted Diffuser DALI

Part: JC71555FRDALI

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Ultra efficient up to 128 lumens per circuit Watt, stainless steel anti-tamper clips with polycarbonate diffuser. ABS body suitable for food preparation areas. Press-fit terminals loop in loop out for quick and simple installation, available with white opal or frosted diffuser. Emergency, microwave and DALI and 1-10V dimmable options available.

Ultra efficient up to 128 lumens per circuit Watt
Stainless steel anti-tamper clips
Polycarbonate diffuser
ABS body suitable for food preparation areas
Press-fit terminals loop in loop out for quick and simple installation
Available with white opal or frosted diffuser
DALI and 1-10V dimmable options available

Protection class :	I
Width :	85mm
Connection type :	Screwed terminal
Housing colour :	Grey
Voltage type :	AC
With movement sensor :	No
Control gear :	LED driver constant current
Colour rendering index (CRI/Ra) :	80-89
Number of poles :	3
Length :	1570mm
Height/depth :	80mm
Material :	Plastic
Light source type :	LED non-replaceable
Suitable for emergency lighting :	No
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
Luminaire may be covered with thermally insulating material :	No
Control gear included :	Yes
Maximum system power :	27W
Rated luminous flux acc. IEC 62722-2-1 :	3400Lm
Colour of light :	White
Type of cabling :	Suitable for through wiring
Dimming 0-10 V :	No
Dimming 1-10 V :	No
Dimming DALI :	Yes
Dimming DMX :	No
Dimming potentiometer (integrated) :	No
Dimming LineSwitch :	No
Dimming manufacturer's proprietary system :	Yes
Dimming mains voltage modulation :	No
Dimming trailing edge :	No
Dimming leading edge :	No
Dimming programmable :	Yes
Dimming RF :	No
Dimming Sine Wave Reduction :	No
Dimming Touch and Dim :	No
Dimming Zigbee :	No
Dimming with push-button :	No
No dimming function :	No
Light distribution :	Diffuser
Dimming DSI :	No
Power factor :	0.98
