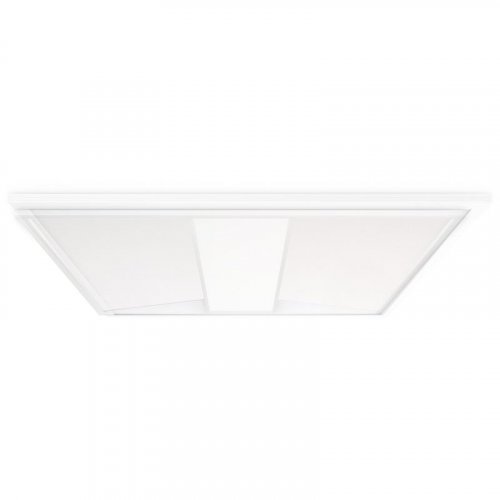

JCC JC71376DSI Skytile Direct/Indirect IP20 LED Panel & Driver 600 x 600 35W 4000K DSI

Part: JC71376DSI
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Nano diffuser specifically engineered to reduce visual discomfort, assists with compliance of UGR19 lit space. Designed to comply with BS EN 12464-1 lighting of work places, 4000K colour temperature as standard to match JCC commercial offering smooth even light distribution. Compatible with standard and JCC self-test emergency remote packs.

  • Nano diffuser specifically engineered to reduce visual discomfort
  • Assists with compliance of UGR19 lit space
  • Designed to comply with BS EN 12464-1 lighting of work places
  • 4000K colour temperature as standard to match JCC commercial offering
  • Smooth even light distribution
  • Compatible with standard and JCC self-test emergency remote packs

Protection class :II
Width :595mm
Connection type :Screwed terminal
Housing colour :White
Voltage type :AC
With movement sensor :No
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
With light sensor :No
Suitable for suspended mounting :No
Number of poles :2
Length :595mm
Height/depth :101mm
Housing material :Aluminium
Light source type :LED non-replaceable
Suitable for light line configuration :No
Suitable for emergency lighting :Yes
Light outlet :Direct/indirect
Light sharing :Symmetric
Cover material :Plastic opal
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP20
Lamp included :Yes
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :Yes
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Colour temperature :4000 to -K
Maximum system power :35W
Rated luminous flux acc. IEC 62722-2-1 :3400Lm
Colour of light :White
With air slots :No
Type of cabling :Through wiring included
Rated ambient temperature acc. IEC62722-2-1 :25 to -°C
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :No
Dimming leading edge :No
Dimming programmable :No
Dimming RF :No
Dimming Sine Wave Reduction :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :Yes
Light distribution :Diffuser
Luminaire efficacy :97
Dimming DSI :Yes
Suitable for ceiling mounting :Yes
Power factor :0.9
