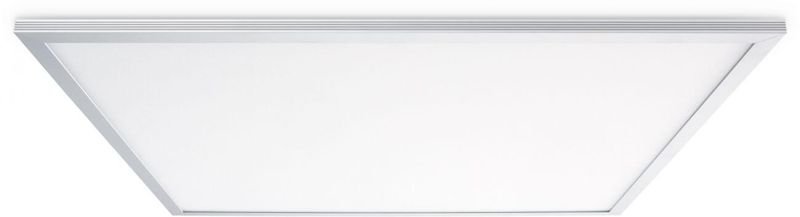

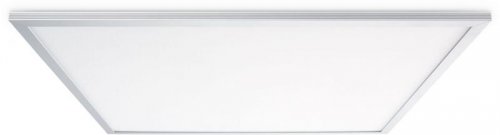

JCC JC71276PD Skytile Sense IP44 LED Panel&Driver 600x600 28W 3000lm 4700K Presence Detection

Part: JC71276PD
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Microwave step-dimmable to 10%,25% and 50% levels. Sensors can be wired in synchronised banks for seamless office integration with Variable LED hold time and standby period. Achieve up to an additional 50% energy saving against standard Skytile.

  • Microwave step-dimmable to 10%
  • 25% and 50% levels
  • Sensors can be wired in synchronised banks for seamless office integration
  • Variable LED hold time and standby period
  • Achieve up to an additional 50% energy saving against standard Skytile

Protection class :II
Width :595mm
Connection type :Screwed terminal
Housing colour :Silver
Voltage type :AC
With movement sensor :Yes
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
With light sensor :Yes
Suitable for suspended mounting :Yes
Number of poles :2
Length :595mm
Height/depth :9.8mm
Housing material :Aluminium
Light source type :LED non-replaceable
Suitable for light line configuration :No
Suitable for emergency lighting :Yes
Light outlet :Direct
Light sharing :Symmetric
Cover material :Plastic opal
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP44
Lamp included :Yes
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :Yes
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Colour temperature :4700 to -K
Maximum system power :28W
Rated luminous flux acc. IEC 62722-2-1 :3000Lm
Colour of light :White
With air slots :No
Type of cabling :Through wiring included
Rated ambient temperature acc. IEC62722-2-1 :25 to -°C
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :No
Dimming leading edge :No
Dimming programmable :No
Dimming RF :No
Dimming Sine Wave Reduction :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :No
Light distribution :Diffuser
Luminaire efficacy :107
Dimming DSI :No
Suitable for ceiling mounting :Yes
Power factor :0.95
