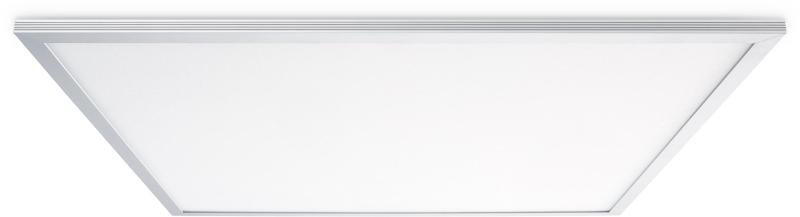

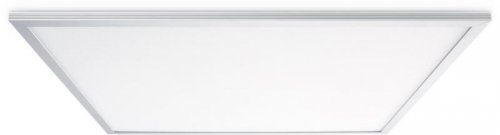

JCC JC71276 Skytile 3000 IP44 LED Panel & Driver 600 x 600 28W 4700K

Part: JC71276
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Outperforms traditional 4x18W fluorescent 7 year extended warranty including 2 year on-site support .Up to 107 lumens per circuit Watt. Suspension kit and surface mount box available and compatible with standard and JCC self-test emergency remote packs.

  • Outperforms traditional 4x18W fluorescent
  • 7 year extended warranty including 2 year on-site support
  • Up to 107 lumens per circuit Watt
  • Available in three colour temperatures 3000K 4000K and 4700K
  • Suspension kit and surface mount box available
  • Compatible with standard and JCC self-test emergency remote packs

Protection class :II
Width :595mm
Housing colour :Silver
Voltage type :AC
With movement sensor :No
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
With light sensor :No
Suitable for suspended mounting :Yes
Length :595mm
Height/depth :9.8mm
Housing material :Aluminium
Light source type :LED non-replaceable
Suitable for light line configuration :No
Suitable for emergency lighting :Yes
Light outlet :Direct
Light sharing :Symmetric
Cover material :Plastic opal
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP44
Lamp included :Yes
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :Yes
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :Yes
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Colour temperature :4700 to -K
Maximum system power :28W
Rated luminous flux acc. IEC 62722-2-1 :3000Lm
Colour of light :White
With air slots :No
Rated ambient temperature acc. IEC62722-2-1 :25 to -°C
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :No
Dimming leading edge :No
Dimming programmable :No
Dimming RF :No
Dimming Sine Wave Reduction :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :No
Light distribution :Diffuser
Luminaire efficacy :107
Dimming DSI :No
Suitable for ceiling mounting :Yes
Power factor :0.95
