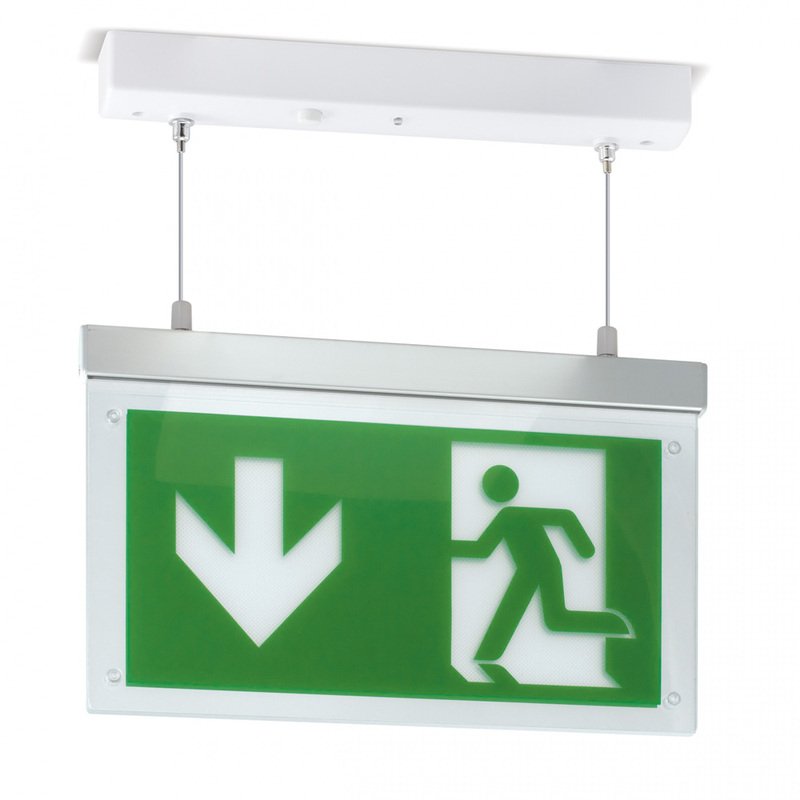

JCC JC50325 Surface mount suspended Exit Blade Maintained 3M IP20 without legend

Part: JC50325

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Visible from a distance of 24 metres, running man legend kits bought separately and is suitable for use as maintained and non maintained.

Mounting method :	Wall surface mounted
Protection class :	II
Width :	45mm
Housing colour :	White
Length :	285mm
Height/depth :	700mm
Housing material :	Plastic
Light source type :	LED non-replaceable
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP20
Colour temperature :	6000K
Maximum system power :	3W
Rated luminous flux acc. IEC 62722-2-1 :	25Lm
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Nominal operation time :	0 to 3 Hour
