JCC JC50322 3W Exit box self-test PC Housing/Acrylic c/w down legend IP20

Part: JC50322

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

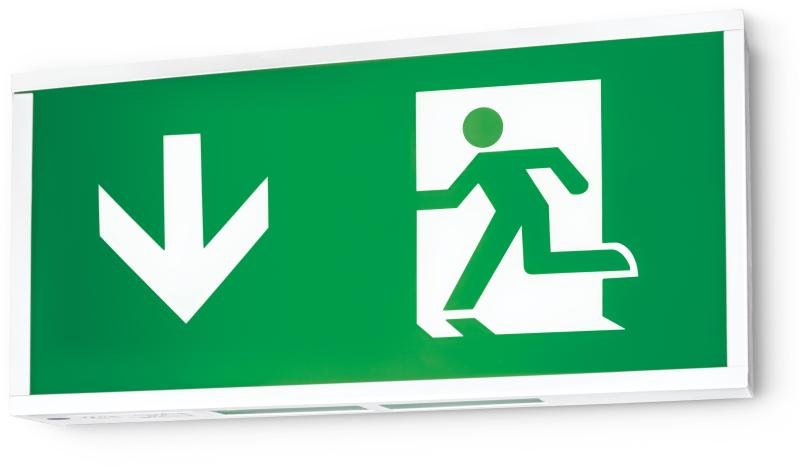

Visible from a distance of 24 metres, supplied as standard with down running man legend, Left/right or up running man legends bought separately. Top and rear conduit entry knock out points, suitable for use as maintained and non maintained.

Visible from a distance of 24 metres
Supplied as standard with down running man legend
Left/right or up running man legends bought separately
Top and rear conduit entry knock out points
Suitable for use as maintained and non maintained

Mounting method :	Wall surface mounted
Protection class :	I

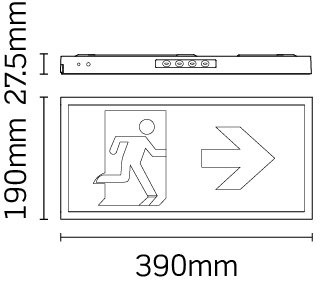

Width :	27.5mm
Housing colour :	White
Length :	390mm
Height/depth :	190mm
Housing material :	Plastic
Light source type :	LED non-replaceable
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP20
Colour temperature :	6000K
Maximum system power :	3W
Rated luminous flux acc. IEC 62722-2-1 :	15Lm
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Nominal operation time :	0 to 3 Hour
