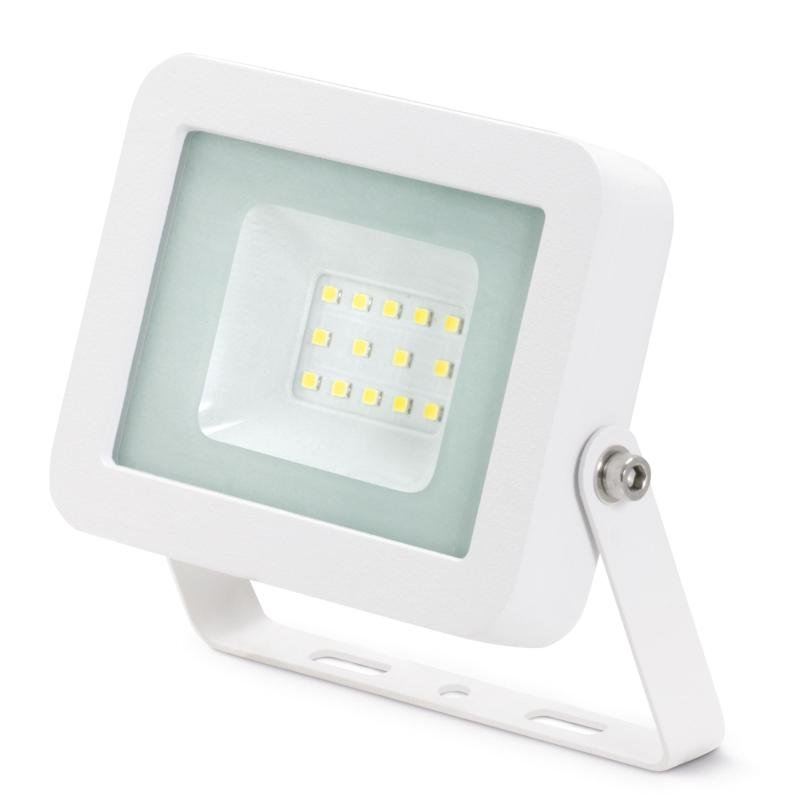

JCC JC45200WH 10W LED Floodlight IP65 Alu 4000K White

Part: JC45200WH

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

High performance domestic floodlight with an efficiency of 100 Lumens per circuit Watt. Has and angled bracket for easy installation. Driverless technology and is supplied with pre-wired 800mm flex, Full IP65 protection against dust and moisture. Galvanized, bracket and toughened glass.

Highly efficient at 100 Lumens per circuit Watt
Angled bracket for easy installation
Driverless technology
Supplied pre-wired with 800mm flex
Available in black and white colour variants
Galvanized bracket
Toughened glass

Protection class :	I
Width :	26.5mm
Reflector :	High-gloss
Housing colour :	White
Surface protection :	Powder coated
Voltage type :	AC
With movement sensor :	No
Control gear :	Not required
Colour rendering index (CRI/Ra) :	70-79
With light sensor :	No
Suitable for suspended mounting :	No
Length :	131.4mm
Height/depth :	107.8mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Light outlet :	Direct
Light sharing :	Symmetric
Cover material :	Glass transparent
Nominal voltage :	220 to 240V
Lamp included :	Yes
Suitable for recessed mounting :	No
Suitable for surface mounting :	Yes
Beam angle :	Extreme wide beam >80°
Colour temperature :	4000K
Maximum system power :	10W
Rated luminous flux acc. IEC 62722-2-1 :	1000Lm
Colour of light :	White
Adjustability :	Swivelling
Suitable for traverse mounting :	No
Suitable for pedestal/floor mounting :	No
Type of cabling :	Ending
Colour consistency (McAdam ellipse) :	SDCM6
Total harmonic distortion :	1.795
Rated ambient temperature acc. IEC62722-2-1 :	25°C
Dimming 0-10 V :	No
Dimming 1-10 V :	No
Dimming DALI :	No
Dimming DMX :	No
Dimming potentiometer (integrated) :	No
Dimming LineSwitch :	No
Dimming mains voltage modulation :	No
Dimming trailing edge :	No
Dimming leading edge :	No
Dimming programmable :	No
Dimming RF :	No
No dimming function :	Yes
Light distribution :	Reflector
Luminaire efficacy :	100
Suitable for low voltage cable system :	No
Dimming DSI :	No
Suitable for ceiling mounting :	No
Power factor :	0.5
