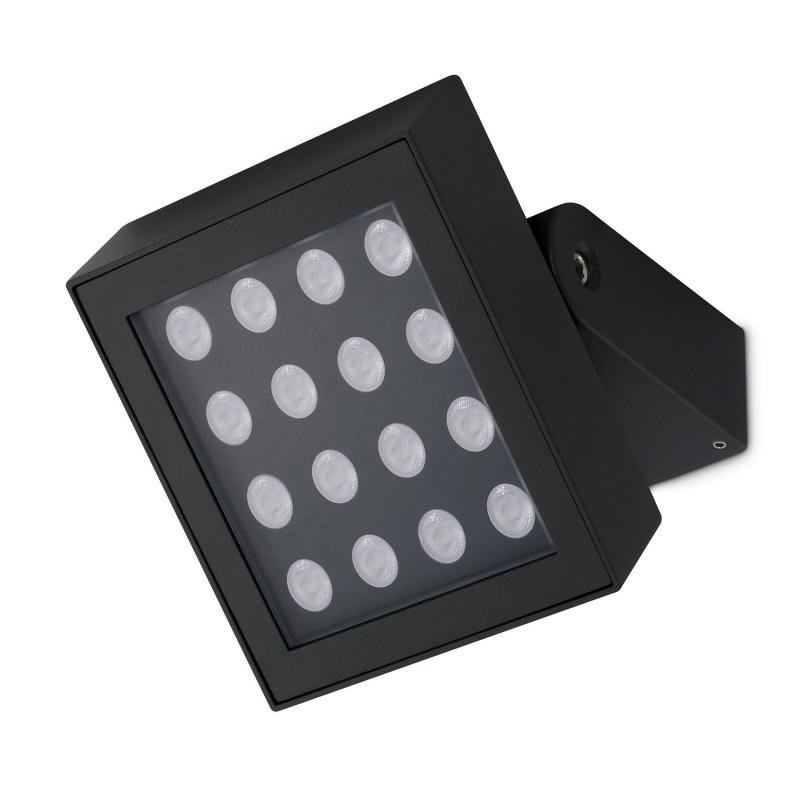

JCC JC17024 14.4W surface/ground mount spot light 180° tilt/45° beam angle IP65

Part: JC17024

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Stylish contemporary design with durable die-cast aluminium construction Surface/ground spot light with 45° beam angle/180° tilt and IP65 protection against dust and moisture with matching colour temperature and finish to the Architectural exterior range.

Durable die-cast aluminium
Tiltable to 120°
Stylish ultra modern design
Matching colour temperature and finish to the Architectural exterior range

Protection class :	I

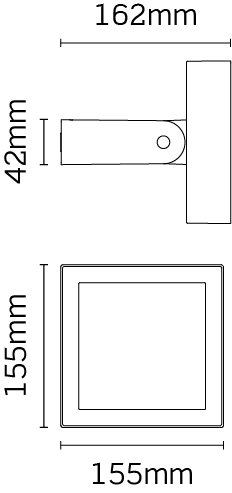

Width :	162mm
Housing colour :	Anthracite
Voltage type :	AC
Control gear :	LED driver constant current
Colour rendering index (CRI/Ra) :	80-89
Length :	155mm
Height/depth :	42mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
Control gear included :	Yes
Suitable for surface mounting :	Yes
Beam angle :	Medium beam 20-40°
Colour temperature :	3000K
Maximum system power :	14.4W
Rated luminous flux acc. IEC 62722-2-1 :	1334Lm
Colour of light :	Yellow
Suitable for pedestal/floor mounting :	Yes
Luminaire efficacy :	93
Power factor :	0.9
