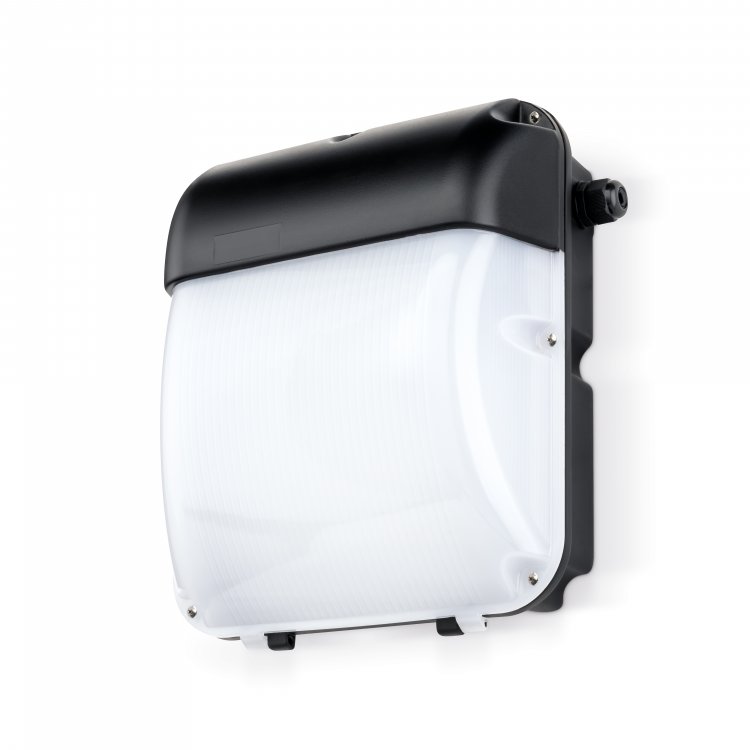

JCC JC130005 30W LED Commercial Wall Bulkhead Emergency

Part: JC130005

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Commercial Wall bulkhead, IP65 as standard with an IK08 rating with emergency built in.

Mounting method :	Wall surface mounted
Protection class :	I
Width :	126mm
Function :	Escape route lighting
Connection type :	Screw connection
Housing colour :	Black
Voltage type :	AC
Power supply system :	Peripheral (individual battery)
Control gear :	LED driver constant current
Number of poles :	4
Length :	288mm
Height/depth :	308mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Cover material :	Plastic opal
Impact resistance (IK rating) :	IK08
Battery chemistry :	Lithium-ions
Nominal voltage :	100 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
With remote switch connection :	No
Monitoring equipment :	Other
Colour temperature :	4000K
Maximum system power :	30W
Rated luminous flux acc. IEC 62722-2-1 :	2600Lm
Type of cabling :	Ending
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Light distribution :	Diffuser
Nominal operation time :	0 to 3 Hour
Power factor :	0.95
