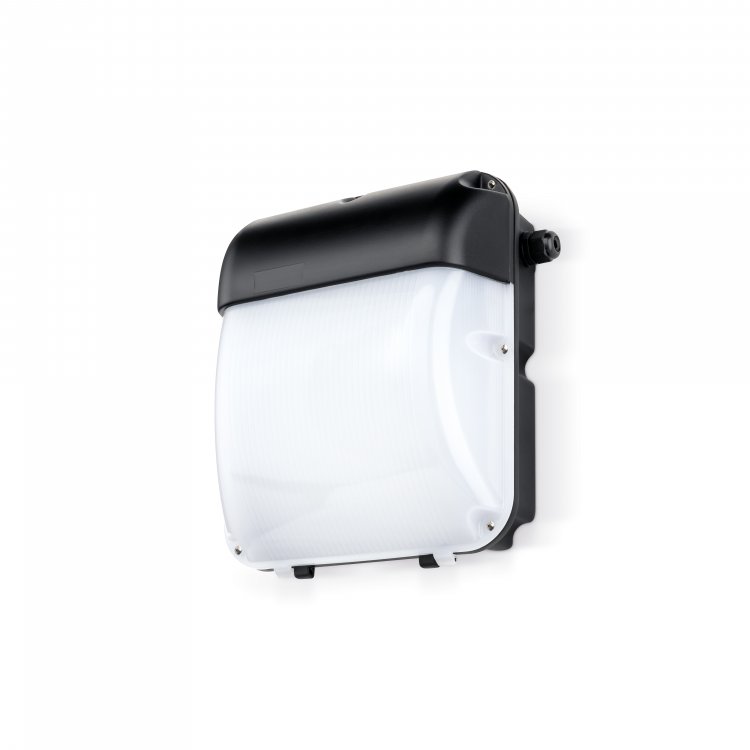

JCC JC130003 20W LED Commercial Wall Bulkhead Photocell

Part: JC130003

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Commercial Wall bulkhead, IP65 as standard with an IK08 rating and built in photocell.

Protection class :	I
Width :	85mm
Housing colour :	Black
Colour rendering index (CRI/Ra) :	70-79
Length :	206mm
Height/depth :	222mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Nominal voltage :	100 to 240V
Degree of protection (IP rating) :	IP65
Colour temperature :	4000K
Maximum system power :	20W
Rated luminous flux acc. IEC 62722-2-1 :	1750Lm
Colour of light :	White
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Luminaire efficacy :	87
Power factor :	0.95
