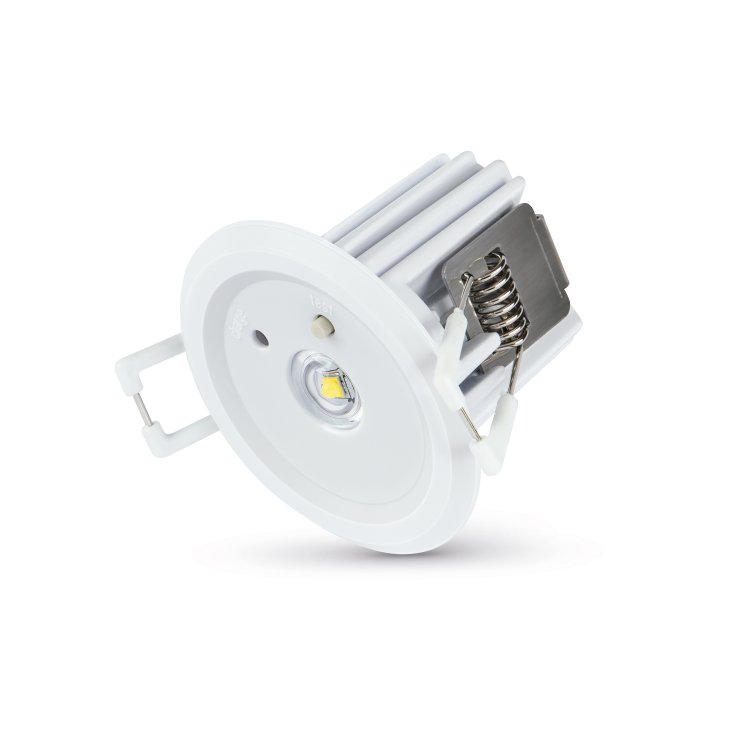

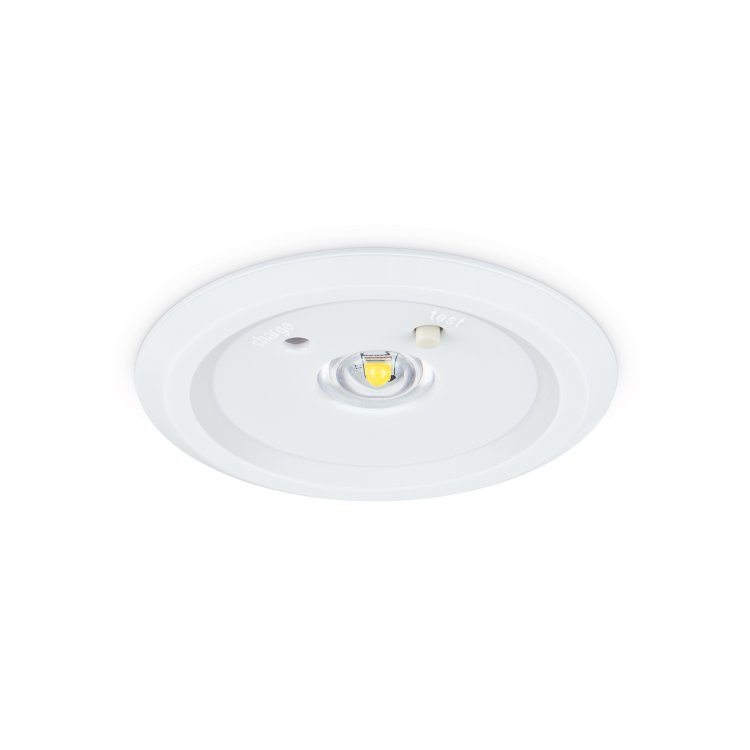

JCC JC110002 3.5W Recessed LED Downlight 110lm NM IP20 White

Part: JC110002

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Non-maintained only, 3.5W recessed downlight Ideal for emergency lighting in offices and open areas.

Mounting method :	Surface mounting/recessed mounting
Protection class :	II

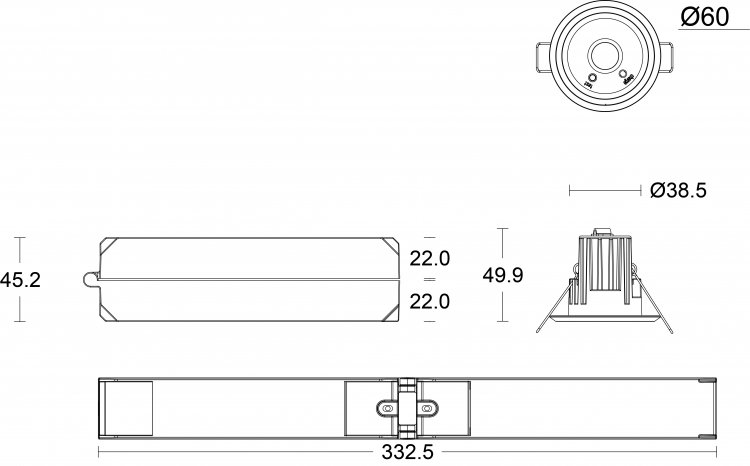

Outer diameter :	60mm
Function :	Escape route lighting
Connection type :	Screw connection
Housing colour :	White
Voltage type :	AC
Recess width :	45mm
Type of indicator :	Single-sided
Number of poles :	2
Housing material :	Aluminium
Light source type :	LED non-replaceable
Battery chemistry :	Lithium-ions
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP20
Lamp included :	Yes
Monitoring equipment :	Automatic self test
Colour temperature :	6000K
Maximum system power :	3.5W
Rated luminous flux acc. IEC 62722-2-1 :	31Lm
Pictogram included :	No
Type of cabling :	Suitable for through wiring
Rated life time L70/B50 at 25 °C :	60000 Hour
Rated ambient temperature acc. IEC62722-2-1 :	0 to 25°C
Light distribution :	Diffuser
Nominal operation time :	0 to 3 Hour
Recess height/depth :	49.9mm
Power factor :	0.5
