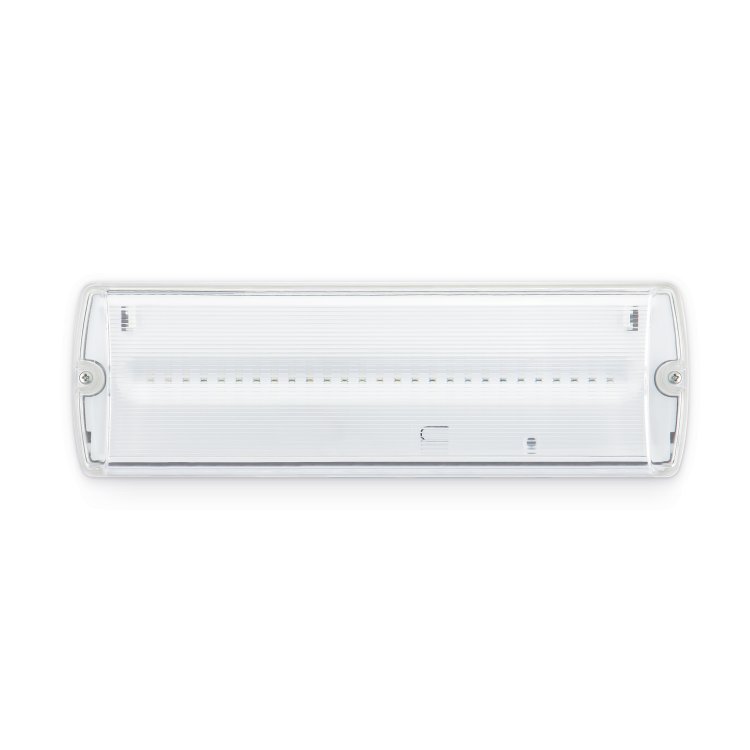

JCC JC110001 Emergency Bulkhead 3.5W IP65 6500K 150lm

Part: JC110001

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Emergency Bulkhead 3.5W,supplied with directional arrow, left and right running man. Suitable for use as maintained and non maintained, hinged LED gear tray for fast installation with side and rear conduit entry points.

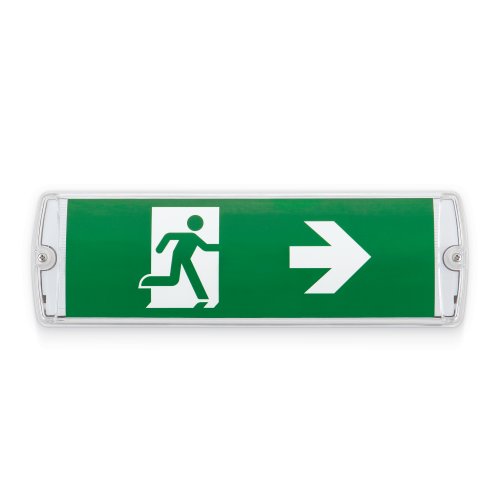

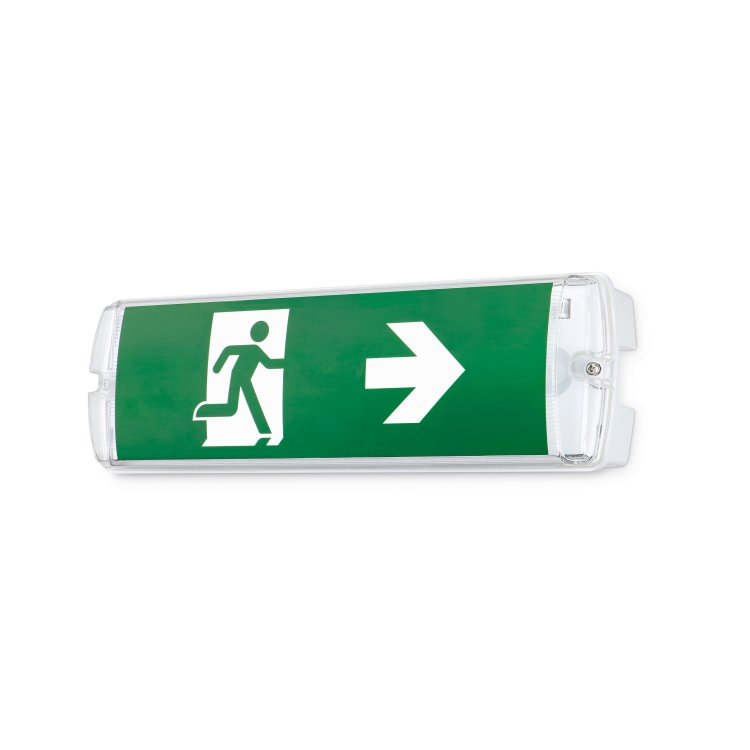

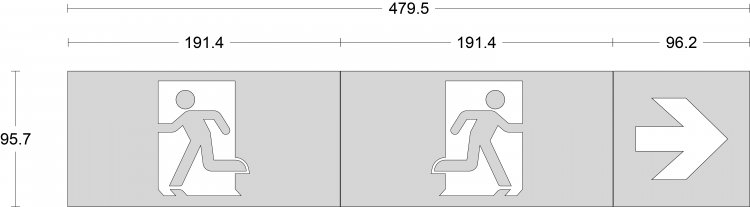

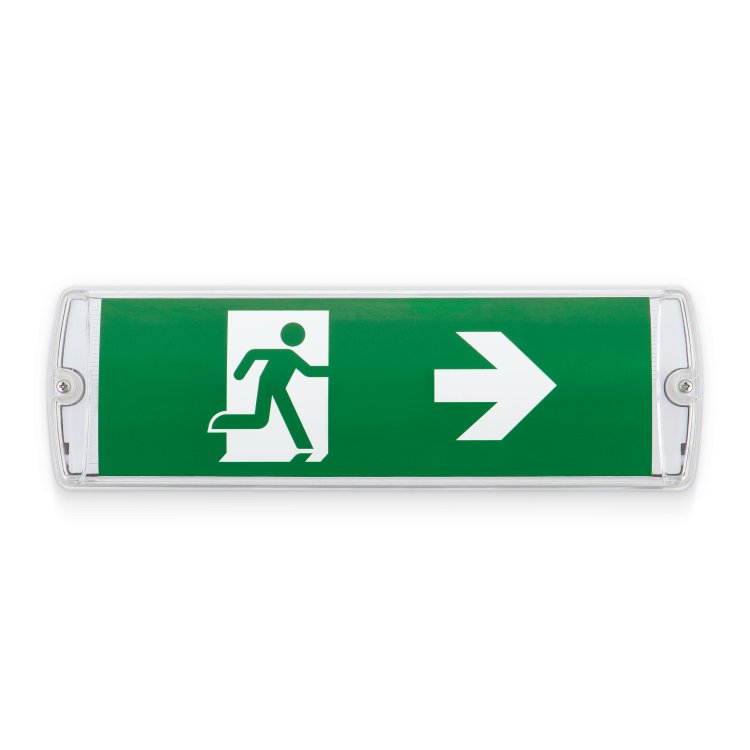

Supplied with Directional arrow/left/right running man legends as standard
Suitable for use as maintained and non maintained

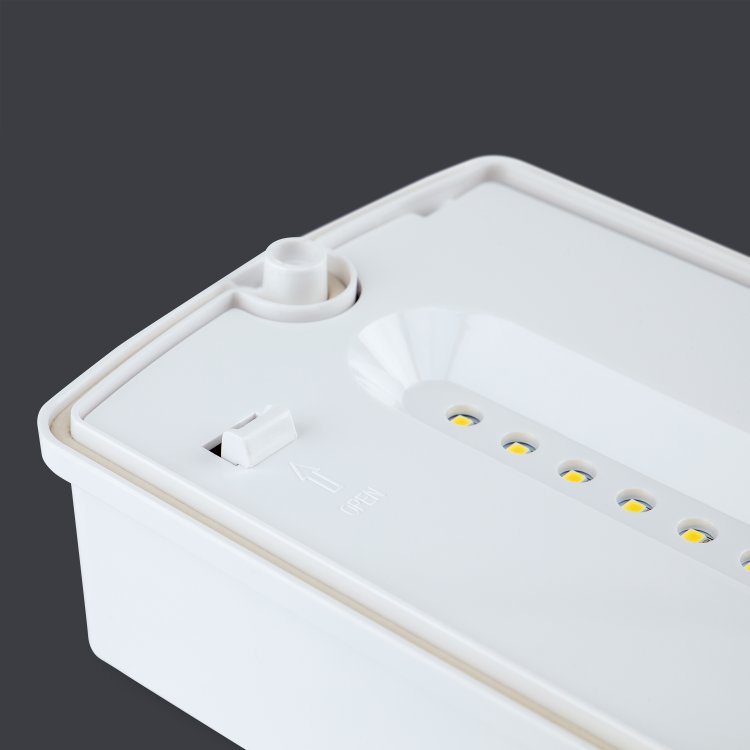

Hinged LED gear tray for fast installation
Side and rear conduit entry points

Mounting method :	Wall surface mounted
Protection class :	II

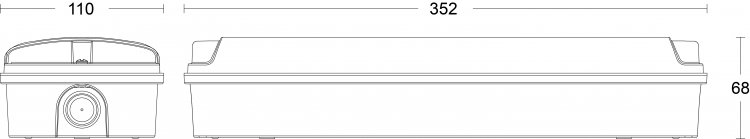

Width :	68mm
Function :	Escape route lighting/signage
Connection type :	Screw connection
Housing colour :	White
Voltage type :	AC
Power supply system :	Peripheral (individual battery)
Control gear :	LED driver constant current
With remote control :	No
Labelling type :	Sticker
Type of indicator :	Single-sided
Number of poles :	4
Length :	352mm
Height/depth :	110mm
Housing material :	Plastic
Light source type :	LED non-replaceable
Cover material :	Plastic transparent
Battery chemistry :	Lithium-ions
Nominal voltage :	100 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
With remote switch connection :	No
Monitoring equipment :	Other
Viewing distance :	18M
Colour temperature :	7000K
Maximum system power :	3W
Rated luminous flux acc. IEC 62722-2-1 :	120Lm
Pictogram included :	Yes
Type of cabling :	Suitable for through wiring
Rated life time L70/B50 at 25 �C :	50000 Hour
Rated ambient temperature acc. IEC62722-2-1 :	0 to 40°C
Light distribution :	Reflector
Nominal operation time :	0 to 3 Hour
Replaceable control gear :	No
Power factor :	0.45
