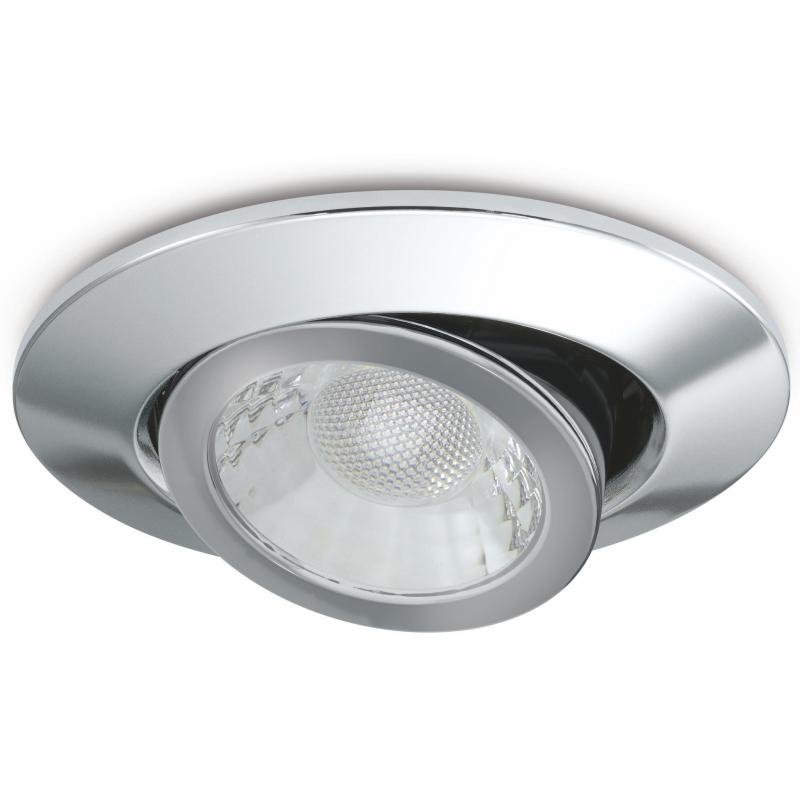

Two colour selectable from below the ceiling 3000K & 4000K20° tiltable and 350° rotatable lensTested for use in ?re-rated ceilingsStrong protected spring clipsFast push-fit termination with remote driverTriac dimmable as standard (recommended dimmer list on JCC website).
Protection class : | II |

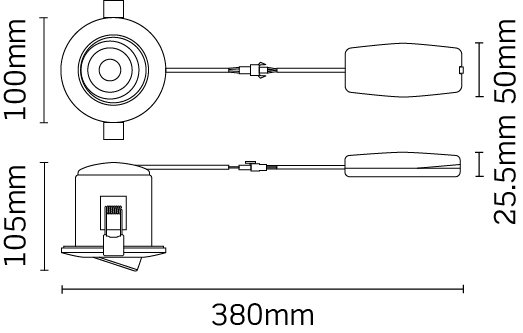

Width : | 84mm |
Lamp cap/base : | Other |
Housing colour : | Chrome |
Voltage type : | AC |
With movement sensor : | No |
Control gear : | LED driver constant current |
Colour rendering index (CRI/Ra) : | 80-89 |
With light sensor : | No |
Suitable for suspended mounting : | No |
Number of poles : | 3 |
Height/depth : | 67.7mm |
Housing material : | Steel |
Light source type : | LED non-replaceable |
Suitable for light line configuration : | No |
Suitable for emergency lighting : | No |
Light outlet : | Direct |
Light sharing : | Symmetric |
Cover material : | Plastic transparent |
Nominal voltage : | 230 to 240V |
Degree of protection (IP rating) : | IP20 |
Lamp included : | Yes |
Luminaire may be covered with thermally insulating material : | Yes |
Number of lamps : | 0 |
Suitable for recessed mounting : | No |
Control gear included : | Yes |
Fit for workplace acc. EN 12464-1 : | No |
Suitable for surface mounting : | No |
Beam angle : | Wide beam 40-80° |
Colour temperature : | 3000 to 4000K |
Maximum system power : | 7.5W |
Rated luminous flux acc. IEC 62722-2-1 : | 650Lm |
Colour of light : | White |
With air slots : | Yes |
Type of cabling : | Suitable for through wiring |
Rated ambient temperature acc. IEC62722-2-1 : | 25°C |
Dimming 0-10 V : | No |
Dimming 1-10 V : | No |
Dimming DALI : | No |
Dimming DMX : | No |
Dimming potentiometer (integrated) : | No |
Dimming LineSwitch : | No |
Dimming manufacturer's proprietary system : | No |
Dimming mains voltage modulation : | No |
Dimming trailing edge : | Yes |
Dimming leading edge : | Yes |
Dimming programmable : | No |
Dimming RF : | No |
Dimming Sine Wave Reduction : | No |
Dimming Touch and Dim : | No |
Dimming Zigbee : | No |
Dimming with push-button : | No |
No dimming function : | No |
Light distribution : | Focal lens |
Luminaire efficacy : | 87 |
Dimming DSI : | No |
Suitable for ceiling mounting : | Yes |
