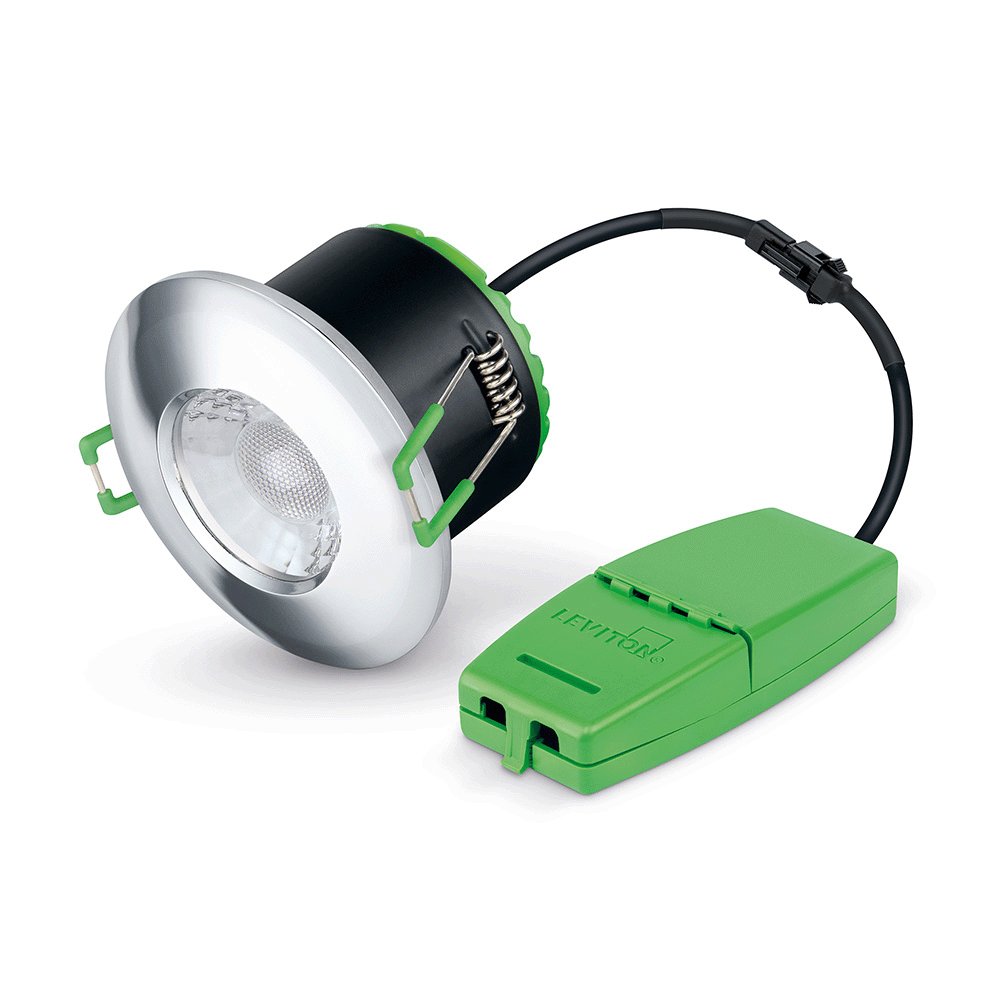

JCC JC1001/CH V50 Fire-rated LED downlight 7.5W 650lm IP65 CH

Part: JC1001/CH
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Two colour selectable from below the ceiling 3000K & 4000KUltra-low profile suitable for shallow 50mm ceiling voidsTested for use in ?re-rated ceilingsIP65 suitable for bathrooms (internal use only)Strong protected spring clipsFast push-fit termination with remote driverTwist & lock bezel designAvailable as complete fixture (JC1001) or without bezel (JC1001/NB)JC1001/NB requires separate bezel (JC1006).

  • Two colour selectable from below the ceiling 3000K & 4000K
  • Ultra-low profile suitable for shallow 50mm ceiling voids
  • Tested for use in ?re-rated ceilings
  • IP65 suitable for bathrooms (internal use only)
  • Strong protected spring clips
  • Fast push-fit termination with remote driver
  • Twist & lock bezel design
  • Available as complete fixture (JC1001) or without bezel (JC1001/NB)
  • JC1001/NB requires separate bezel (JC1006)

Protection class :II
Width :84mm
Lamp cap/base :Other
Housing colour :Chrome
Voltage type :AC
With movement sensor :No
Control gear :LED driver constant current
Colour rendering index (CRI/Ra) :80-89
With light sensor :No
Suitable for suspended mounting :No
Number of poles :3
Height/depth :67.4mm
Housing material :Steel
Light source type :LED non-replaceable
Suitable for light line configuration :No
Suitable for emergency lighting :No
Light outlet :Direct
Light sharing :Symmetric
Cover material :Plastic transparent
Nominal voltage :230 to 240V
Degree of protection (IP rating) :IP65
Lamp included :Yes
Luminaire may be covered with thermally insulating material :Yes
Number of lamps :0
Suitable for recessed mounting :No
Control gear included :Yes
Fit for workplace acc. EN 12464-1 :No
Suitable for surface mounting :No
Beam angle :Wide beam 40-80°
Colour temperature :3000 to 4000K
Maximum system power :7.5W
Rated luminous flux acc. IEC 62722-2-1 :650Lm
Colour of light :White
With air slots :Yes
Rated ambient temperature acc. IEC62722-2-1 :25°C
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :Yes
Dimming leading edge :Yes
Dimming programmable :No
Dimming RF :No
Dimming Sine Wave Reduction :No
Dimming Touch and Dim :No
Dimming Zigbee :No
Dimming with push-button :No
No dimming function :No
Light distribution :Focal lens
Luminaire efficacy :87
Dimming DSI :No
Suitable for ceiling mounting :Yes
