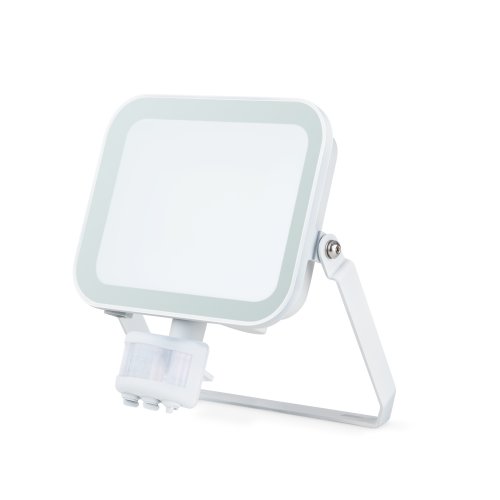

JCC JC091014 Niteflood™ LED Floodlight 30W IP65 4000K White +PIR

Part: JC091014

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

30W LED Up to 112 LpcW,IP65 protection against dust and moisture. 60° angled bracket for ease of installation. The breather gland incorporated is to protect against condensation build up. The opal glass helps reduced glare. The fitting is supplied pre-wired with 800mm flex, Driverless technology. The PIR versions come with with manual override as standard.

Up to 112 LcpW
IP65 protection against dust and moisture
60° angled bracket for ease of installation
Breather gland incorporated to protect against condensation
Opal glass for reduced glare
Supplied pre-wired with 800mm flex
Driverless technology
Manual override

Protection class :	I
Width :	105.8mm
Connection type :	Other
Housing colour :	White
Surface protection :	Other
Voltage type :	AC
With movement sensor :	Yes
Control gear :	Not required
Colour rendering index (CRI/Ra) :	80-89
Wall mounting :	Yes
With light sensor :	Yes
Number of poles :	3
Length :	173.6mm
Height/depth :	174mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Light outlet :	Direct
Light sharing :	Symmetric
Cover material :	Glass opal
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
Control gear included :	No
Suitable for surface mounting :	Yes
Beam angle :	Extreme wide beam >80°
Maximum system power :	30W
Colour of light :	White
Adjustability :	Rotatable
Constant luminous flux control :	Yes
Type of cabling :	Ending
Colour consistency (McAdam ellipse) :	SDCM5
Rated ambient temperature acc. IEC62722-2-1 :	-10 to 30°C
Light distribution :	Diffuser
Luminaire efficacy :	107
Colour temperature switchable :	No
Lumen setting adjustable :	No
Beam angle adjustable :	No
Power factor :	0.9
