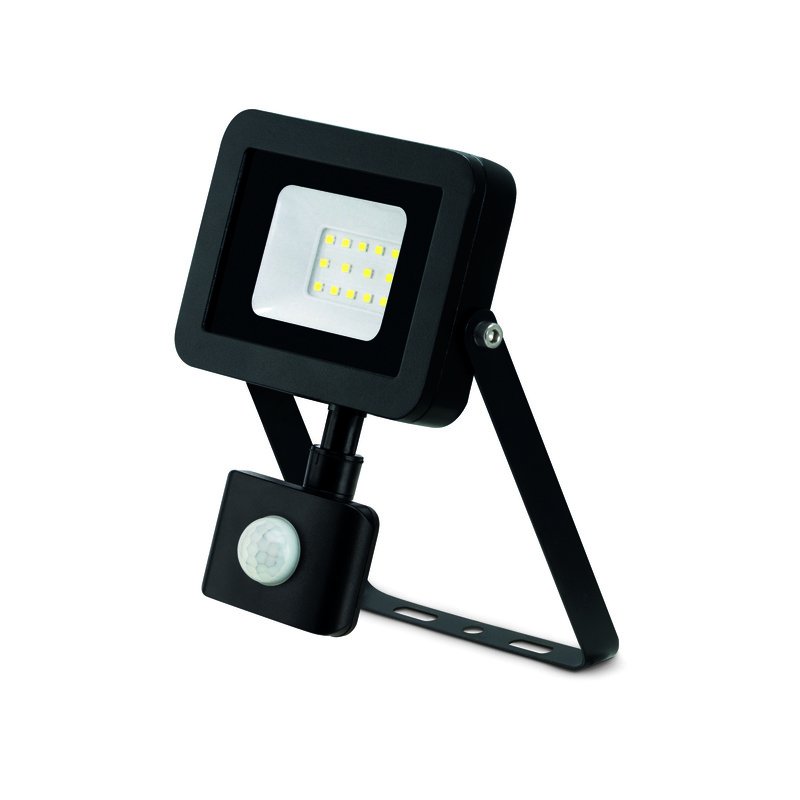

JCC JC090001 10W LED Floodlight +PIR IP65 Manual Override Alu 4000K Black

Part: JC090001
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

High performance domestic floodlight with an efficiency of 100 Lumens per circuit Watt. Has and angled bracket for easy installation. Driverless technology and is supplied with pre-wired 800mm flex, PIR with manual override function, Full IP65 protection against dust and moisture. Galvanized, bracket and toughened glass.

  • Highly efficient at 100 Lumens per circuit Watt
  • Angled bracket for easy installation
  • Driverless technology
  • Supplied pre-wired with 800mm flex
  • Manual override function
  • Full IP65 protection against dust and moisture
  • Galvanized bracket
  • Toughened glass

Protection class :I

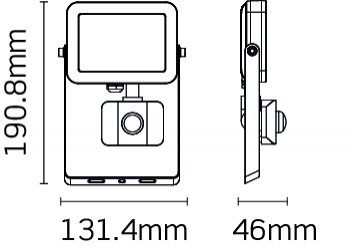

Width :46mm
Reflector :High-gloss
Connection type :Other
Housing colour :Black
Surface protection :Powder coated
Voltage type :AC
With movement sensor :Yes
Control gear :Not required
Colour rendering index (CRI/Ra) :70-79
With light sensor :Yes
Suitable for suspended mounting :No
Number of poles :3
Length :131.4mm
Height/depth :190.8mm
Housing material :Aluminium
Light source type :LED non-replaceable
Light outlet :Direct
Light sharing :Symmetric
Cover material :Glass transparent
Nominal voltage :220 to 240V
Lamp included :Yes
Suitable for recessed mounting :No
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Brushed surface :No
Colour temperature :4000K
Maximum system power :10W
Rated luminous flux acc. IEC 62722-2-1 :1000Lm
Colour of light :White
Adjustability :Swivelling
Suitable for traverse mounting :No
Suitable for pedestal/floor mounting :No
Type of cabling :Ending
Colour consistency (McAdam ellipse) :SDCM6
Total harmonic distortion :1.795
Rated ambient temperature acc. IEC62722-2-1 :25°C
Dimming 0-10 V :No
Dimming 1-10 V :No
Dimming DALI :No
Dimming DMX :No
Dimming potentiometer (integrated) :No
Dimming LineSwitch :No
Dimming manufacturer's proprietary system :No
Dimming mains voltage modulation :No
Dimming trailing edge :No
Dimming leading edge :No
Dimming programmable :No
Dimming RF :No
No dimming function :Yes
Light distribution :Reflector
Luminaire efficacy :100
Suitable for low voltage cable system :No
Dimming DSI :No
Suitable for ceiling mounting :No
Power factor :0.5
