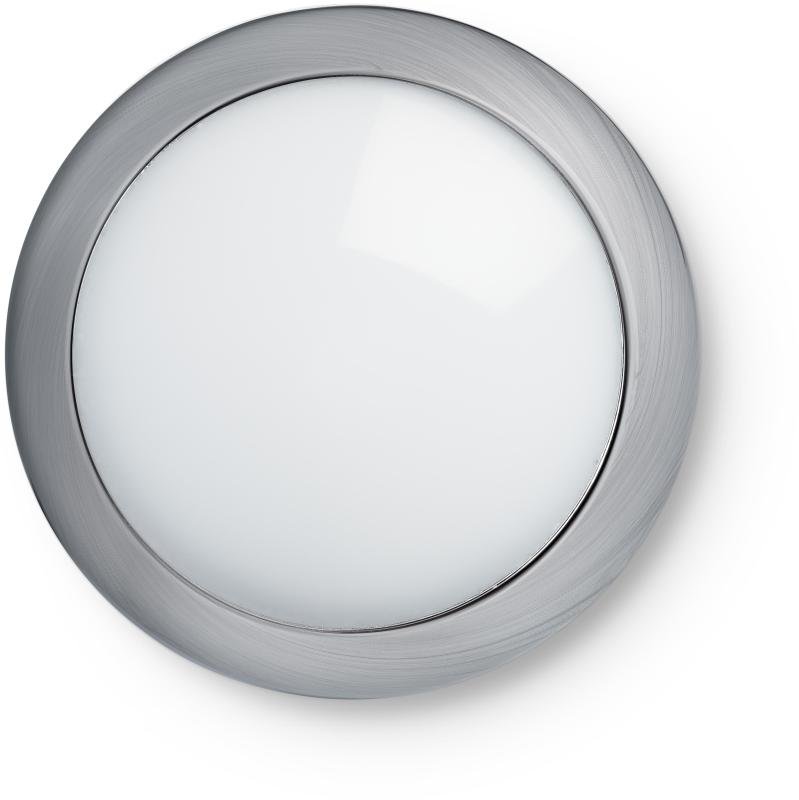

JCC JC070080 RadiaLED Rapid IP65 4000K 12W Microwave On/Off Emergency With WH Rim

Part: JC070080
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Designed with Electricians for Electricians RadiaLed Rapid is 2.5x Faster to install than traditional LED bulkheads and has a detachable terminal, for simple wiring connection. With multiple cable entry, central and offset rear entry points 20mm conduit entry, on top, bottom, sides and rim Clip-in tool-less LED gear tray design. Smooth, even light distribution with an IK10, maximum impact rating, IP65 protection against dust and moisture and Emergency, microwave and dimmable options the complete fitting option comes complete with white rim as standard, also available to purchase separately as module, body and rim.

  • 2.5x Faster to install than traditional LED bulkheads
  • Detachable terminal, for simple wiring connection
  • Multiply cable entry, central and offset rear entry points
  • 20mm conduit entry, on top, bottom, sides and rim
  • Clip-in tool-less LED gear tray design
  • Smooth, even light distribution
  • IK10, maximum impact rating
  • IP65 protection against dust and moisture
  • Emergency, microwave and dimmable options
  • Complete with white rim as standard

Mounting method :Wall surface mounted / ceiling surface mounting
Protection class :II

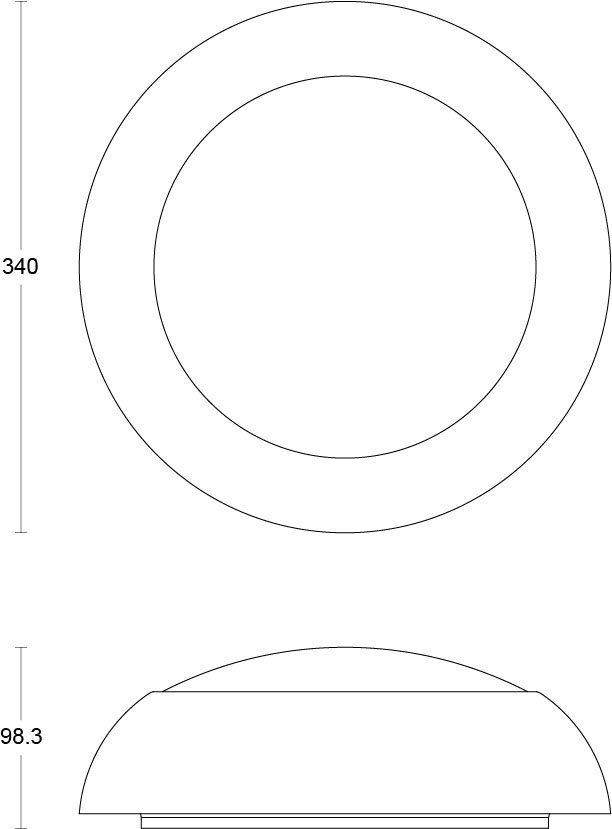

Outer diameter :340mm
Function :Escape route lighting
Connection type :Plug-in connection
Housing colour :White
Voltage type :AC
Power supply system :Peripheral (individual battery)
Control gear :LED driver constant current
Number of poles :4
Height/depth :98.3mm
Housing material :Plastic
Light source type :LED non-replaceable
Cover material :Plastic opal
Battery chemistry :Lithium-ions
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP65
Lamp included :Yes
Monitoring equipment :Other
Colour temperature :4000K
Maximum system power :12W
Type of cabling :Through wiring included
Rated ambient temperature acc. IEC62722-2-1 :0 to 25°C
Light distribution :Diffuser
Nominal operation time :0 to 3 Hour
Power factor :0.5
