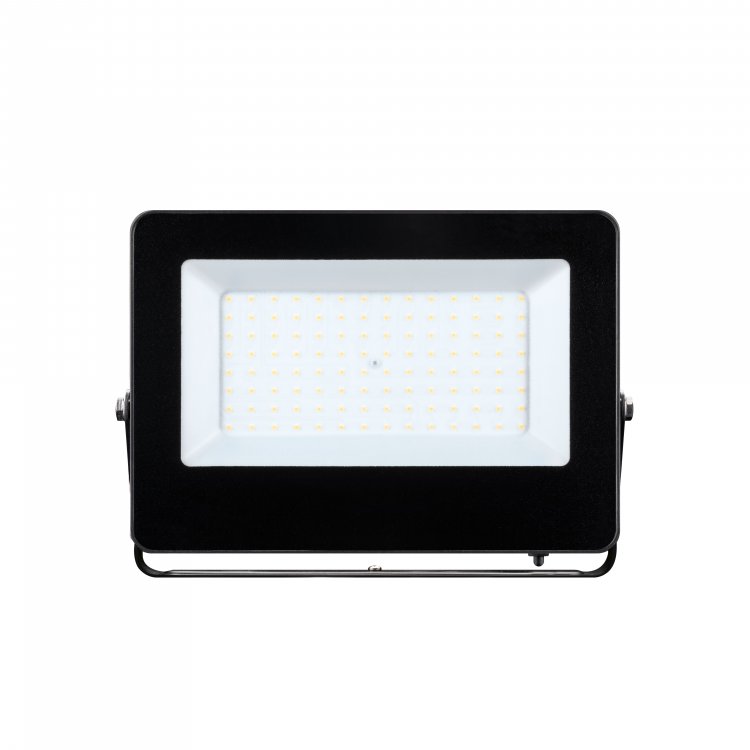

JCC JC050006 Toughflood Commercial 100W 8500lm 85lpcW 4000K IP65 Black

Part: JC050006
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Toughflood is our high output commercial Led floodlight which is a direct replacement for HID equivalents. Toughflood has been designed with a galvanized bracket and integrated heat sink that can effectively control thermal management, improving performance and reliability. Up to 90 LpcW with driver less technology, instant start up and Polycarbonate Diffuser: Suitable for food preparation, 2M pre-wired H05RN-F cable for exterior applications and ADC12 die-cast aluminium body, corrosion resistant, lightweight for easier installation . Easy access installation with 55° angled Galvanized steel bracket, 110° beam angle.

  • Up to 90 LpcW
  • Driver less technology, instant start up
  • Polycarbonate Diffusser: Suitable for food preparation
  • 2M pre-wired H05RN-F cable for exterior applications
  • ADC12 die-cast aluminium body, corrosion resistant, lightweight for easier installation
  • Easy access installation with 55° angled Galvanized steel bracket
  • 110° beam angle

Protection class :I
Width :307mm
Reflector :White
Connection type :Other
Housing colour :Black
Surface protection :Powder coated
With movement sensor :No
Control gear :Not required
Colour rendering index (CRI/Ra) :70-79
With light sensor :No
Suitable for suspended mounting :No
Number of poles :3
Length :265mm
Height/depth :38mm
Housing material :Aluminium
Light source type :LED non-replaceable
Light outlet :Direct
Light sharing :Symmetric
Cover material :Plastic transparent
Impact resistance (IK rating) :IK08
Nominal voltage :220 to 240V
Degree of protection (IP rating) :IP65
Lamp included :Yes
Luminaire may be covered with thermally insulating material :No
Suitable for recessed mounting :No
Suitable for surface mounting :Yes
Beam angle :Extreme wide beam >80°
Colour temperature :4000 to -K
Maximum system power :100W
Colour of light :White
Adjustability :Rotatable
Suitable for pedestal/floor mounting :Yes
Suitable for clamp-mounting :Yes
Luminous flux :8500 to -Lm
Type of cabling :Ending
Colour consistency (McAdam ellipse) :SDCM6
Rated ambient temperature acc. IEC62722-2-1 :-20 to 40°C
Light distribution :Diffuser
Luminaire efficacy :85
Suitable for ceiling mounting :Yes
Power factor :0.9
