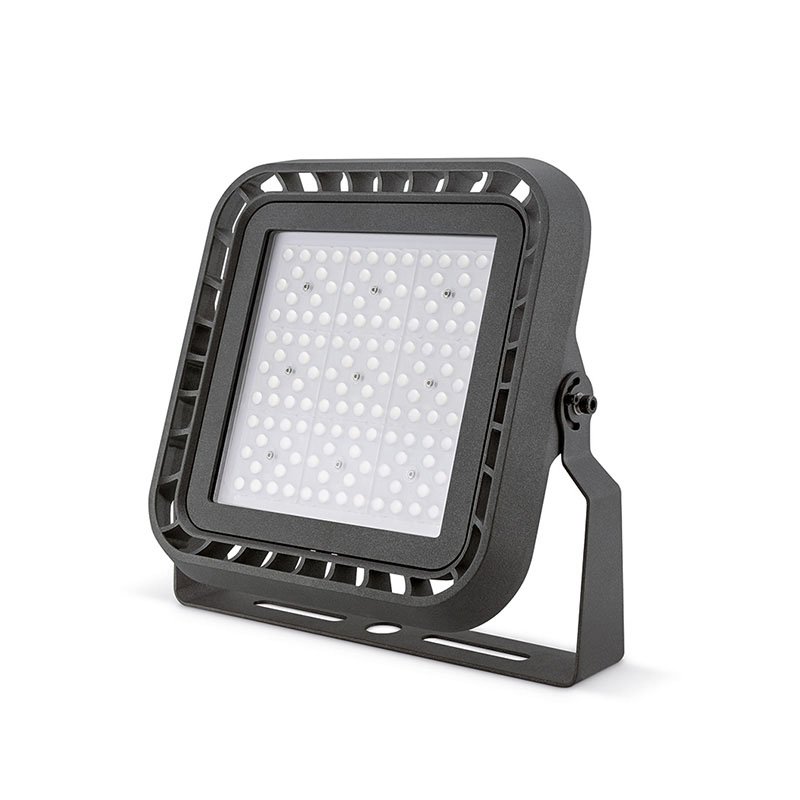

JCC JC050001 Toughflood Asymmetric 80W 130lpcW 4000K IP65 Grey

Part: JC050001

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Toughflood Asymmetric had been engineered with complete control in mind. The asymmetric lenses control light and direct it towards the ground This ensures that all of the light us used efficiently and minimised light pollution. The 180° tiltable bracket provides further control, allowing the installer to position the fitting to light the specified area, IP65 with an IK08 impact rating and up to 120 LpcW.

Asymmetric beam angle
80° x 150° beam angle which tilts downward at 60°
IK08 impact rating
Up to 120 LpcW
5 year warranty

Protection class :	I

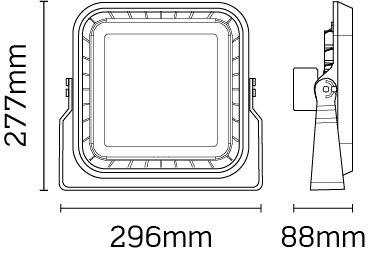

Width :	88mm
Housing colour :	Grey
Voltage type :	AC
With movement sensor :	No
Control gear :	LED driver constant current
Colour rendering index (CRI/Ra) :	70-79
Wall mounting :	Yes
With light sensor :	No
Suitable for suspended mounting :	No
Length :	296mm
Height/depth :	277mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Impact resistance (IK rating) :	IK08
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP65
Lamp included :	Yes
Suitable for recessed mounting :	No
Control gear included :	Yes
Suitable for surface mounting :	Yes
Beam angle :	Extreme wide beam >80°
Colour temperature :	4000K
Maximum system power :	80W
Rated luminous flux acc. IEC 62722-2-1 :	9200Lm
Colour of light :	White
Adjustability :	Rotatable
Suitable for traverse mounting :	No
Suitable for pedestal/floor mounting :	No
Suitable for light-track mounting :	No
Suitable for clamp-mounting :	No
Luminaire efficacy :	115
Suitable for low voltage cable system :	No
Suitable for ceiling mounting :	No
Power factor :	0.9
