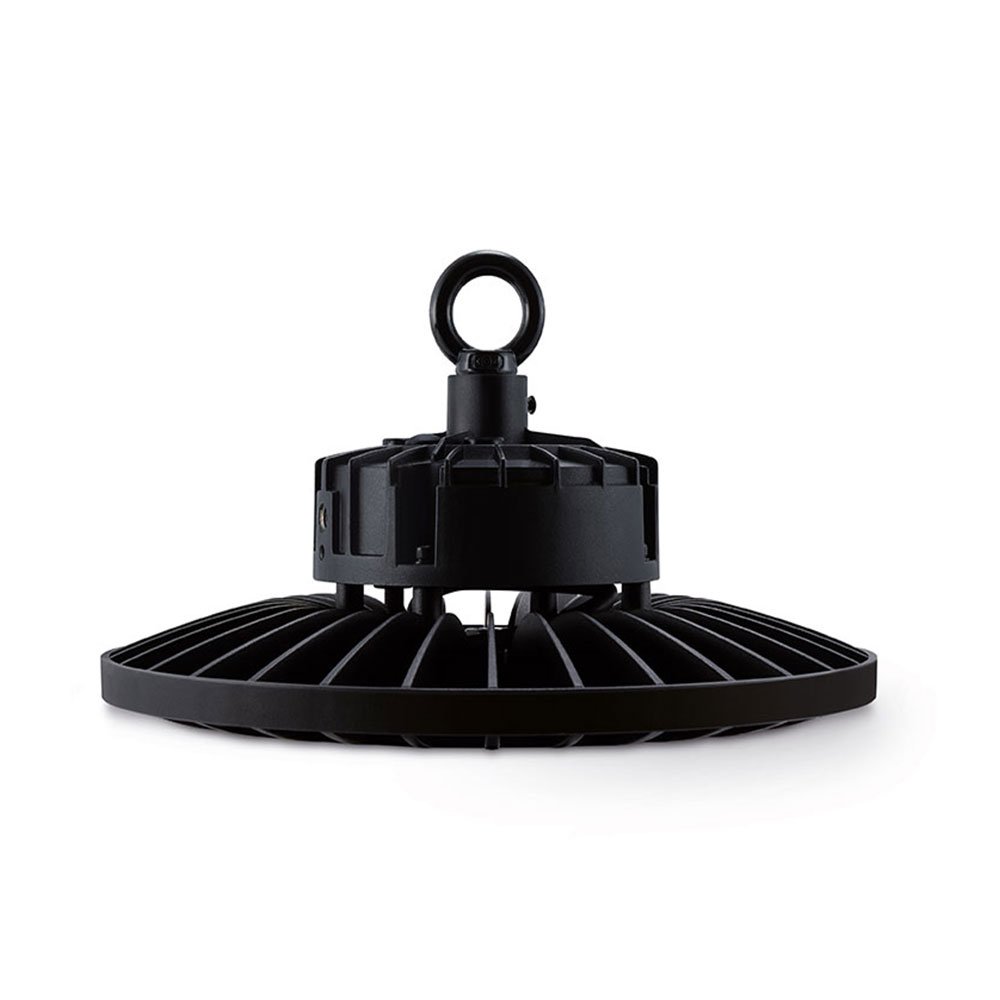

JCC JC040003 Toughbay Retrofit 100W 60° 5700K IP65 Microwave Dimmable G2

Part: JC040003

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

A versatile highbay, offering 60° 90° and 120° beam angle options, 4000K, 5700K options also as emergency and microwave dimming variants and easy to install 1m flex. Ultra efficient 123 Lumens per circuit Watt, 1-10V dimmable as standard and is suitable for extreme operating temperatures -30° to +60°. Step dimmable available with microwave version and remote control, High CRI of 80 ensuring a true representation of colour throughout its life.

Ultra efficient 123 Lumens per circuit Watt
1-10V dimmable as standard
Suitable for extreme operating temperatures -30° to +60°
Step dimmable available with microwave version and remote control
High CRI of 80 ensuring a true representation of colour throughout its life
Available in 60° 90° and 120° beam angle options

Mounting method :	Pendant
Protection class :	I
Connection type :	Screwless terminal
Housing colour :	Black
Voltage type :	AC
Control gear :	LED driver constant current
Colour rendering index (CRI/Ra) :	80-89
Number of poles :	3
Height/depth :	354mm
Housing material :	Aluminium
Light source type :	LED non-replaceable
Suitable for emergency lighting :	No
Light sharing :	Symmetric
Impact resistance (IK rating) :	IK10
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP65
With protective cover :	No
Lamp included :	Yes
Control gear included :	Yes
Beam angle :	Wide beam 40-80°
Maximum system power :	100W
Colour of light :	White
Type of cabling :	Ending
Rated ambient temperature acc. IEC62722-2-1 :	-30 to 45°C
Dimming 0-10 V :	No
Dimming 1-10 V :	Yes
Dimming DALI :	No
Dimming DMX :	No
Dimming potentiometer (integrated) :	No
Dimming LineSwitch :	No
Dimming manufacturer's proprietary system :	No
Dimming mains voltage modulation :	No
Dimming trailing edge :	No
Dimming leading edge :	No
Dimming programmable :	No
Dimming RF :	No
Dimming Touch and Dim :	No
Dimming Zigbee :	No
Dimming with push-button :	No
Light distribution :	Diffuser
Dimming DSI :	No
Power factor :	0.97
