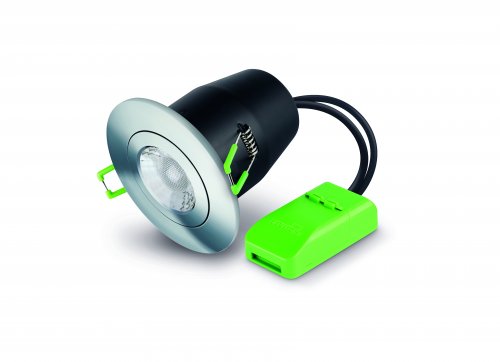

JCC JC010023/CH Fireguard Next Generation Unlamped Downlight Tilt IP20 Brushed Nickel

Part: JC010023/CH

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Fireguard Next Generation has been truly designed with electricians, for electricians. Ensuring all apsects of the installation process such as termination, ceiling entry and ceiling construction were considers to ensure simplicity for the contractor. Slim pro?le, die-cast aluminium bezels, designed speci?cally for LED lamps, ultra fast press ?t loop-in/loop-out terminal. Tested for use in ?re-rated ceilings IP20 rated (IP65 variant available)IP20 Tilt variant available and complies with 2014 building regulations: Part B, C and E. Available with a variety of bezel finish options.

Slim pro?le, die-cast aluminium bezels
Designed speci?cally for LED lamps
Ultra fast press ?t loop-in/loop-out terminal
Tested for use in ?re-rated ceilings
15° Tiltable inner bezel
Complies with 2014 building regulations: Part B, C and E

Protection class :	I
Outer diameter :	100mm
Lamp cap/base :	GU10
Housing colour :	Black
Voltage type :	AC
With movement sensor :	No
Lamp power :	7 to -W
Control gear :	Not required
With light sensor :	No
Suitable for suspended mounting :	No
Number of poles :	3
Height/depth :	115.45mm
Housing material :	Steel
Light source type :	LED replaceable
Suitable for emergency lighting :	No
Nominal voltage :	220 to 240V
Degree of protection (IP rating) :	IP20
Lamp included :	No
Luminaire may be covered with thermally insulating material :	Yes
Suitable for recessed mounting :	Yes
Control gear included :	No
Suitable for surface mounting :	No
Maximum system power :	7W
With air slots :	No
Type of cabling :	Suitable for through wiring
Rated ambient temperature acc. IEC62722-2-1 :	25 to -°C
Suitable for ceiling mounting :	Yes
