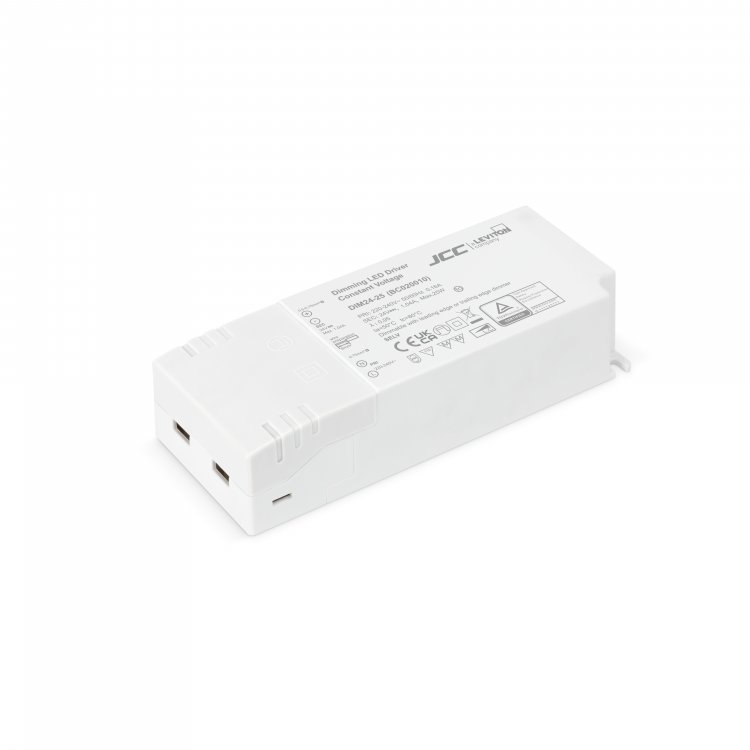

JCC BC020010 24V 25W Triac dimmable IP20 driver

Part: BC020010

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

24V 25W Triac dimmable IP20 driver for use with single colour LED strip.

Protection class :	II

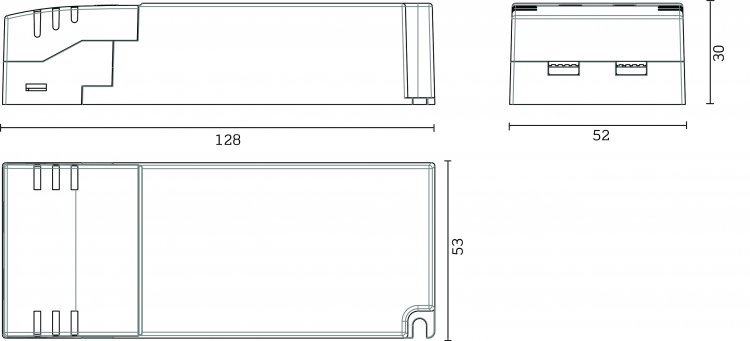

Width :	30mm
Model :	Static
Height :	53mm
Housing :	Plastic housing
Length :	128mm
Suitable for outdoor use :	No
Degree of protection (IP rating) :	IP20
Suitable for constant current :	No
Suitable for constant voltage :	Yes
Suitable for DC-voltage (primary side) :	No
Dimming 0-10 V :	No
Dimming 1-10 V :	No
Dimming DALI :	No
Dimming DMX :	No
Dimming potentiometer (integrated) :	No
Dimming LineSwitch :	No
Dimming manufacturer's proprietary system :	No
Dimming mains voltage modulation :	No
Dimming trailing edge :	Yes
Dimming leading edge :	Yes
Dimming programmable :	No
Dimming RF :	No
Dimming Sine Wave Reduction :	No
Dimming Touch and Dim :	No
Dimming Zigbee :	No
Dimming with push-button :	No
Dimming DSI :	No
