Hager WXPSSU83FO
Image is for illustrative purposes only

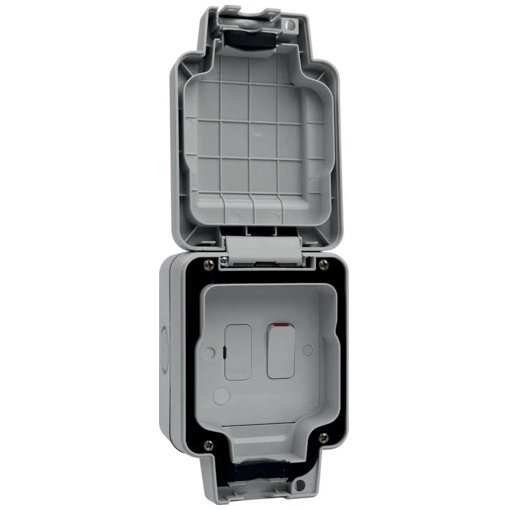

Hager WXPSSU83FO Sollysta IP66 13A Outdoor Weatherproof Double Pole Switched Fused Connection Unit

Part: WXPSSU83FO
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

IP66 13A Double Pole Switched Fused Connection Unit with Flex Outlet.

  • IP66 rating conforms to BS EN 60529 : 1992
  • Functional products tested and certified to BS 1363-4.
  • Robust and rugged enclosures designed to withstand the elements
  • Unique double hinge allows lid to open a full 180 degrees
  • Fixing point for padlock
  • Cable entries: 103 x 116.5 = 4x20, 1x20 & 1x25

Nominal voltage :240V
Mounting method :Surface mounted
Method of operation :Rocker
Colour :Grey
Halogen free :Yes
Surface protection :Untreated
Rated current :13A
Number of socket outlets :0
Material qualifier :Thermoplastic
Over voltage-/surge protection :Yes
Fault current protection :No
Material :Plastic
Type of fastening :Mounting with screw
Type of switch :Off switch
Type of socket outlet :British Standard
Mounting direction :Horizontal
With lighting :No
Nominal current socket outlet :13A
Transparent :No
Surface finish :Glossy
With miniature fuse :No
Degree of protection (IP rating) :IP66
Width of device :86mm
Height of device :86mm
Depth of device :50mm
Number of active contacts (round) :0
Number of active contacts (rectangular) :2
