Hager WXPSS82
Image is for illustrative purposes only

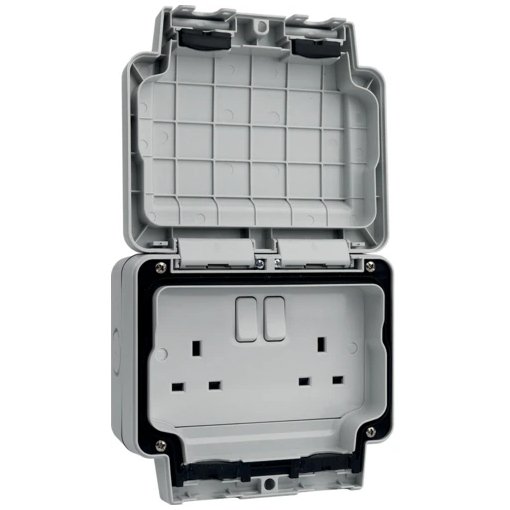

Hager WXPSS82 Sollysta IP66 13A Twin Outdoor Weatherproof Double Pole Switched Socket

Part: WXPSS82
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

IP66 Twin 13A Double Pole Switched Socket.

  • IP66 rating conforms to BS EN 60529 : 1992
  • Functional products tested and certified to BS 1363 Part 2, a.c. only
  • Robust and rugged enclosures designed to withstand the elements
  • Unique double hinge allows lid to open a full 180 degrees
  • Fixing point for padlock
  • Cable entries: 103 x 116.5 = 4x20, 1x20 & 1x25 164 x 116.5 = 6x20, 1x20 & 1x25
  • 13A 2 Gang Double Pole Switched Socket

Nominal current :13A
Nominal voltage :250V
Mounting method :Flush mounted
Colour :Grey
Model :British Standard
Halogen free :Yes
Number of units/gangs :0
Lockable :No
With hinged lid :Yes
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :No
Number of phases :1
With enhanced contact protection :Yes
Frequency :50 to 60Hz
With on/off switch :Yes
Label space/information surface :No
Eject-mechanism :No
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Insulated mounting :No
Material :Plastic
Type of fastening :Mounting with screw
Impact resistance (IK rating) :Other
Transparent :No
Surface finish :Glossy
With miniature fuse :No
With loop through function :Yes
Degree of protection (IP rating) :IP66
Width of device :146mm
Height of device :116.5mm
Depth of device :88.25mm
Number of switchable socket outlets :0
With function lighting :No
With orientation lighting :No
Number of module spaces (modular system) :0
Number of active contacts (round) :0
Number of active contacts (rectangular) :4
