Hager WXPPS22
Image is for illustrative purposes only

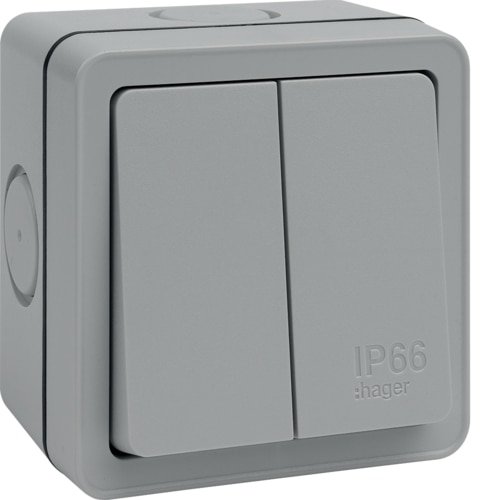

Hager WXPPS22 Sollysta IP66 10AX 2 Gang 2 Way Outdoor Weatherproof Switch

Part: WXPPS22
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

IP66 10AX 2 Gang 2 Way Switch.

  • IP66 rating conforms to BS EN 60529 : 1992.
  • Functional products tested and certified to BS EN 60669-1, a.c. only
  • Robust and rugged enclosures designed to withstand the elements
  • Cable entries: 90 x 90 = 4x20, 1x20 & 1x25

Nominal voltage :240V
Mounting method :Surface mounted
Assembly :Basic unit fully enclosed
Method of operation :Rocker
Colour :Grey
Halogen free :Yes
With mounting plate :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Rated current :10A
Feedback-signal contact :No
Material qualifier :Thermoplastic
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :Two-way switch
Number of rockers/gangs :2
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP66
Width of device :90mm
Height of device :90mm
Depth of device :50mm
Label space/information surface :No
Function lighting :Other
Number of module spaces (modular system) :0
