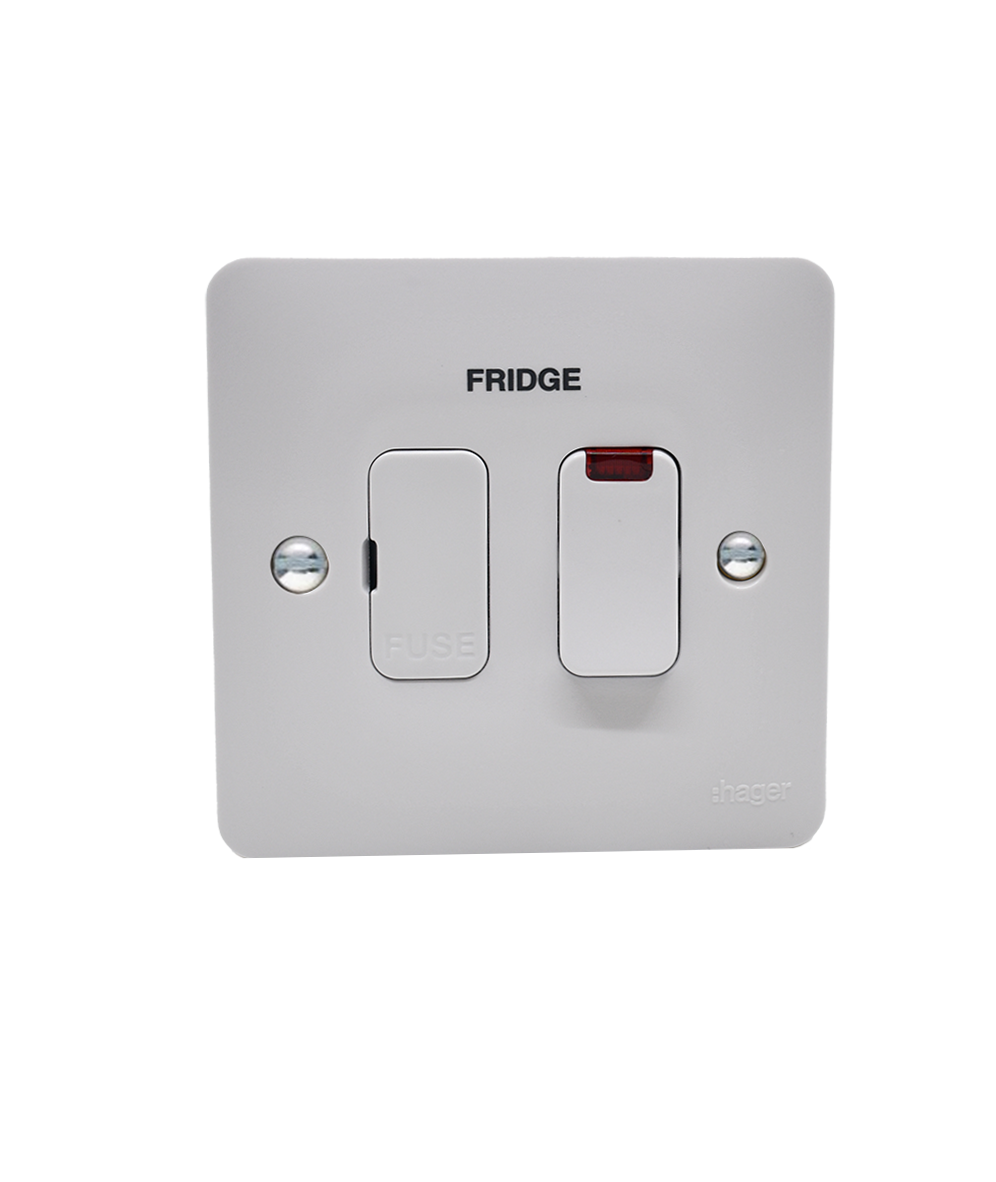

Hager WMSSU83N/WM (Fridge type shown)
Image is for illustrative purposes only

Hager WMSSU83N/WM Sollysta 13A Double Pole White Switched Fuse Connection Unit with LED Indicator marked 'WASHING MACHINE'

Part: WMSSU83N/WM
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

13A FCU Switched with LED Indicator Marked WASHING MACHINE.

  • Complies with BS 1363-4.
  • Single screw fast fix cable clamp, accommodates up to 1.5mm˛ flexible cord
  • All terminals are upward facing with clearly printed terminal markings for ease of installation
  • Capacity of each terminal 2 x 6.0mm2 conductors
  • Supplied with M3.5 x 30mm long fixing screws and screw covers
  • We also offer a bespoke printing service for your individual requirements
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :Yes
With mounting plate :Yes
Connection type :Screwed terminal
Illumination :Yes
Surface protection :Untreated
Recess depth :25.3mm
Rated current :13A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :LED replaceable
Material :Plastic
Type of fastening :Screw mounting
Wiring system :2-pole switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :13AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :30.3mm
Label space/information surface :Yes
Function lighting :Illuminated (on)
Number of module spaces (modular system) :0
