Hager WMSS82N
Image is for illustrative purposes only

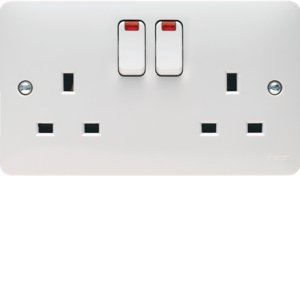

Hager WMSS82N Sollysta 13A 2 Gang Double Pole White Switched Socket with LED Indicator

Part: WMSS82N
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

2 Gang Double Pole Switched Socket Dual Earth with LED Indicators.

  • Unique patented three part safety shutter.
  • Complies with BS 1363-2, a.c only.
  • Double pole switching mechanism on switched sockets.
  • All terminal screws grouped in-line and upward facing for ease of installation.
  • Clear printed and engraved terminal markings.
  • Capacity of each terminal: 3 x 4mm2 conductors switched & unswitched
  • WMSS82USB(S) - Warning: To avoid possible damage to the product or spurious insulation readings, please disconnect the product before carrying out insulation resistance testing.
  • WMSS82USB(S) USB output: 5V d.c. 2.4A total max.
  • Supplied with M3.5 x 30mm long fixing screws and screw covers.
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal current :13A
Nominal voltage :250V
Mounting method :Flush mounted
Colour :White
Model :British Standard
Halogen free :Yes
Number of units/gangs :0
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :Yes
Number of phases :1
With enhanced contact protection :Yes
Frequency :50 to 60Hz
With on/off switch :Yes
Label space/information surface :No
Eject-mechanism :No
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Insulated mounting :No
Material :Plastic
Type of fastening :Mounting with screw
Impact resistance (IK rating) :Other
Transparent :No
Surface finish :Glossy
With miniature fuse :No
With loop through function :Yes
Degree of protection (IP rating) :IP20
Width of device :146mm
Height of device :86mm
Depth of device :29.5mm
Number of switchable socket outlets :0
With function lighting :Yes
With orientation lighting :No
Number of module spaces (modular system) :0
Number of active contacts (round) :0
Number of active contacts (rectangular) :4
