Hager WMRJ45
Image is for illustrative purposes only

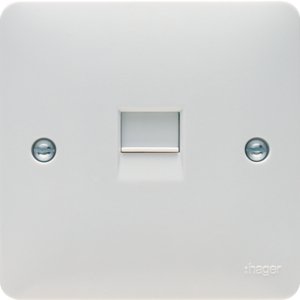

Hager WMRJ45 Sollysta White RJ45 Socket

Part: WMRJ45
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

RJ45 Socket.

  • BT sockets comply with BS 6312-2.
  • Supplied with fitted cable tie
  • Quick connection with insulation displacement terminals
  • Clearly printed terminal marking
  • Supplied with M3.5 x 20mm long fixing screws and screw covers
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Colour :White
Halogen free :Yes
With hinged lid :No
Application :UAE/IAE (ISDN)
Surface protection :Untreated
Outlet direction :Inclined
With strain relief :No
Material qualifier :Urea formaldehyde
Imprintable label :Without indication field
Number of outlets/connections :1
Material :Plastic
Type of fastening :Mounting with screw
Shielded connections :No
Shielded housing :No
Luster terminal :No
With dust cover :Yes
With imprint :No
With buses/couplings :Yes
Support ring :No
Transparent :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :20.5mm
Minimum depth of back box :16mm
