Hager WMPS3PI

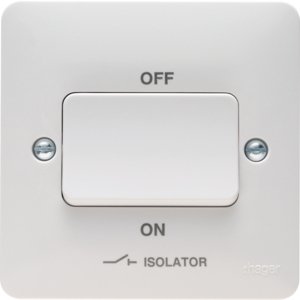

Image is for illustrative purposes only

Hager WMPS3PI Sollysta 3 Pole White Isolator Switch

Part: WMPS3PI
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

3 Pole Isolator Switch.

  • Complies with BS EN 60669-2-4
  • Rated conditional short circuit current (Inc) 1500A tested with Hager MTN110 6kA B curve MCB
  • Capacity of each terminal 2 x 4.0mm˛ conductors
  • Supplied with M3.5 x 20mm long fixing screws and screw covers
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Surface mounted
Assembly :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :Yes
With mounting plate :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :13.1mm
Rated current :10A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :3-pole switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :24mm
Label space/information surface :Yes
Function lighting :Other
Number of module spaces (modular system) :0
