Hager WMPS16
Image is for illustrative purposes only

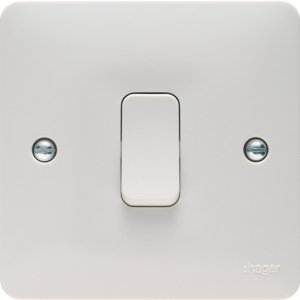

Hager WMPS16 Sollysta Intermediate White Wall Switch

Part: WMPS16
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Intermediate Switch.

  • Complies with BS EN 60669-1, a.c only
  • ‘X‘ rated - No need to derate for fluorescent loads
  • Clear terminal markings
  • Capacity of each terminal - 2 x 4.0mm² conductors
  • For multigang switches use of a 25mm mounting box will provide increased wiring space
  • Supplied with M3.5 x 20mm long fixing screws and screw covers.
  • High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :Yes
With mounting plate :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Recess depth :13.1mm
Rated current :20A
Feedback-signal contact :No
Material qualifier :Thermoplastic
Type of lighting :Other
Material :Plastic
Type of fastening :Screw mounting
Wiring system :Intermediate switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :20AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :24mm
Label space/information surface :No
Function lighting :Other
