Hager WMDP84FOI

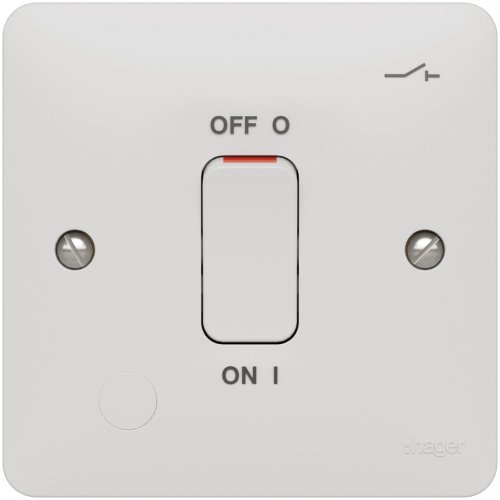

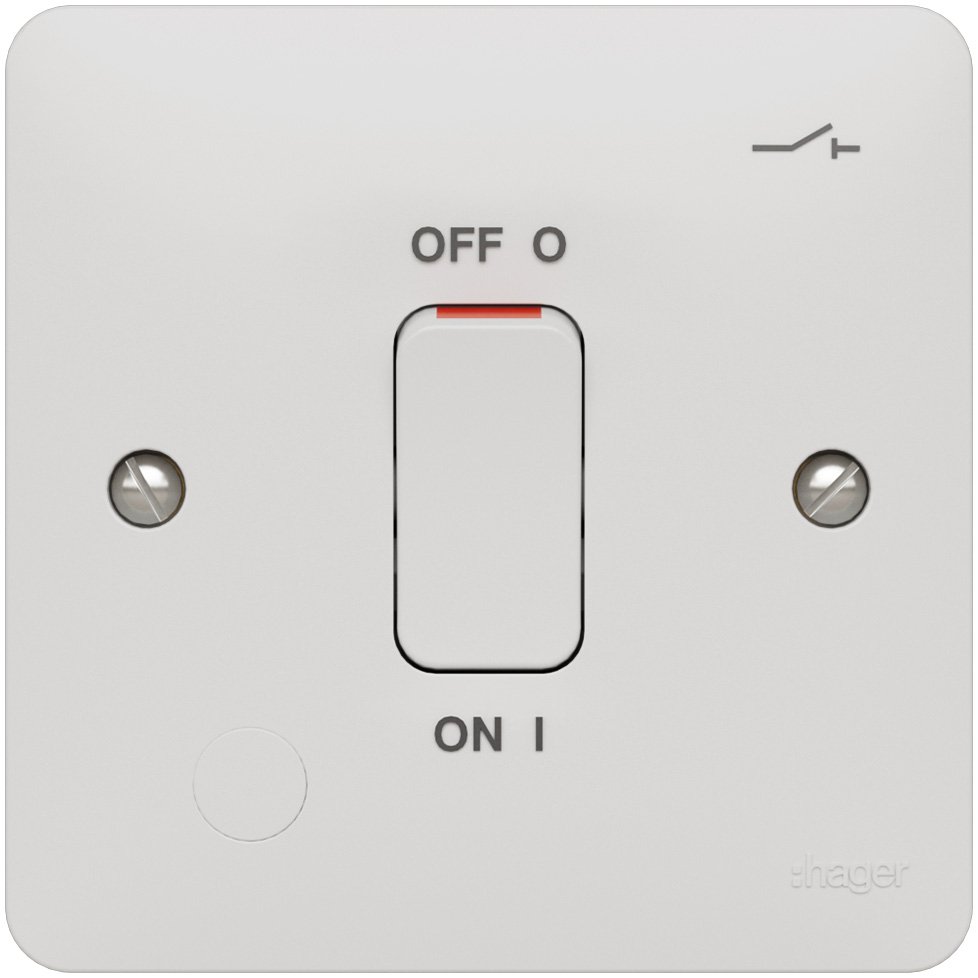

Image is for illustrative purposes only

Hager WMDP84FOI Sollysta 20A Double Pole Switch Isolation Function & Flex Outlet

Part: WMDP84FOI
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Hager Sollysta White Moulded 20A Double Pole Switch Isolation Function & Flex Outlet.

  • Tested by Eurofins UK to BS EN 60669-2-4 to fully comply as a isolation switch
  • Wire and stops provide added security of connection
  • Moulded lead ins
  • Closed (0) and open (1) positions clearly marked
  • Twin earthed

Nominal voltage :240V
Mounting method :Flush mounted
Assembly :Basic unit with full cover plate
Method of operation :Rocker
Colour :White
Halogen free :Yes
With mounting plate :No
Connection type :Screwed terminal
Illumination :Yes
Surface protection :Untreated
Recess depth :21.9mm
Rated current :20A
Feedback-signal contact :No
Material qualifier :Urea formaldehyde
Type of lighting :LED replaceable
Material :Plastic
Type of fastening :Screw mounting
Wiring system :2-pole switch
Number of rockers/gangs :1
Switching current for fluorescent lamps :20AX
Push button switch :No
Washing machine switch :No
Surface finish :Glossy
Degree of protection (IP rating) :IP20
Width of device :86mm
Height of device :86mm
Depth of device :32.8mm
Label space/information surface :Yes
Function lighting :Illuminated (on)
Number of module spaces (modular system) :0
Minimum depth of back box :25mm
Antibacterial treatment :Yes
